Telephone System Overview

The telephone system and telephone preparation primarily differ in that the telephone system has a factory-installed cell phone -R54-. Therefore, the following overview only illustrates the complete telephone system.

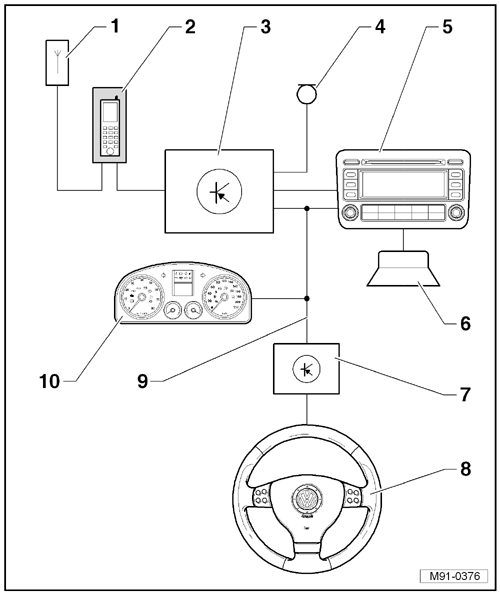

Fig 1: Identifying Telephone System, Layout

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Telephone Antenna -R65-
   • At the top of the rear window on the left side (Sedan).
   • Roof antenna, Wagon.
   • Roof antenna, Sedan, from MY 11.
   • For the antenna on the Wagon, refer to ANTENNA SYSTEMS .
   • Antenna systems, Sedan, from MY 11, refer to ANTENNA SYSTEMS .
2. Telephone Baseplate -R126-
   • On the right of the instrument panel.
   • Removing and installing through 06.2006, refer to TELEPHONE BASEPLATE -R126-, THROUGH 06.06 .
   • Removing and Installing, from 07.06. Refer to TELEPHONE BASEPLATE -R126-, FROM 06.06 .
3. Telephone Transceiver -R36-
   • Under the right front seat.
   • Removing and installing through 06.06, refer to TELEPHONE TRANSCEIVER -R36-, THROUGH 06.06
   • Removing and installing, from 07.06, refer to TELEPHONE TRANSCEIVER -R36-, FROM 07.06 .
4. Telephone Microphone -R38-
   • In Front Interior Light -W1-.
   • Removing and installing, refer to TELEPHONE MICROPHONE -R38- .
5. Radio/RNS
6. Speaker Systems
7. Steering Column Electronic Systems Control Module -J527-
8. Multifunction Steering Wheel
   • Refer to MULTIFUNCTION STEERING WHEEL .
9. CAN Bus
10. Instrument Cluster
