Telephone Transceiver -R36-, Through 06.06

WARNING: This page is about a different variant/trim than selected.

The telephone transceiver is installed under front right seat.

Removing

CAUTION:

-- Remove the cell phone -R54- from the telephone baseplate -R126-.

-- Remove the right front seat. Refer to Removal and Installation .

-- Lift the carpet near the connector station to find the telephone transceiver.

-- Unclip both retainers -arrows- and move the flap downward.

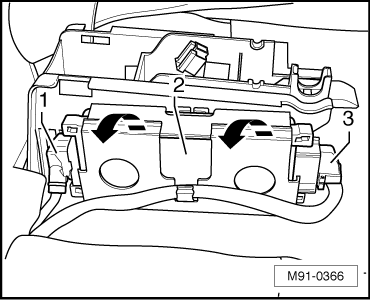

Fig 1: Locating Plastic Retainers And Folding Telephone Transceiver Cover Downward

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the telephone transceiver -2- with the wires still connected.

-- Unlock and disconnect the connectors -1- and -3-.

Installing

Install in reverse order of removal.
