Telephone Transceiver -R36-, From 07.06

The telephone transceiver is installed under front right seat.

Removing

-- Remove the cell phone -R54- from the telephone baseplate -R126-.

-- Move the right front seat into its highest position and the move it all the back.

-- Push the foam insert forward in -direction of arrow-.

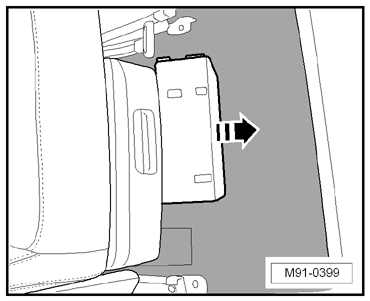

Fig 1: Identifying Foam Insert Pushed Forward In -Direction Of Arrow-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn over the foam insert.

-- Pry the telephone transceiver -1- out of the foam insert -2-.

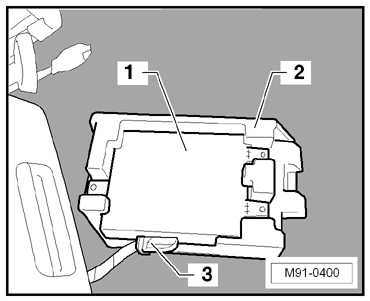

Fig 2: Identifying Foam Insert -2- And Connector -3- From Telephone Transceiver -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -3- from the telephone transceiver -1-.

Installing

Install in reverse order of removal.
