Telephone BASEPLATE -R126-, Through 06.06

Removing

-- Remove the cell phone -R54- from the telephone baseplate.

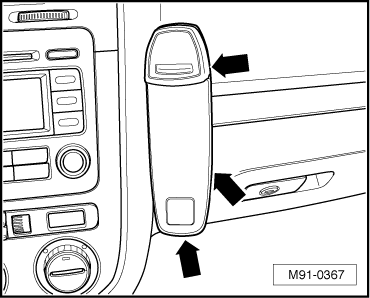

-- Unclip the cover -arrows- off the telephone baseplate.

Fig 1: Identifying Telephone Baseplate Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

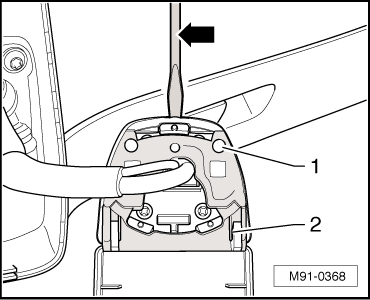

-- Pry off the -arrow- the contact plate -1- from the base holder -2-.

Fig 2: Identifying Screwdriver To Pry Up Contact Plate From Base

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

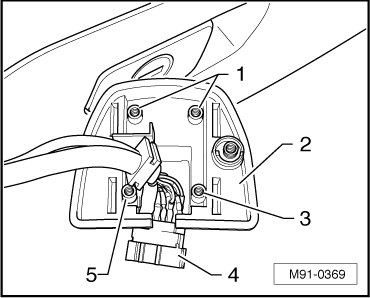

-- Remove the screws -1-, -3- and -5- from the contact plate -2-.

Fig 3: Identifying Telephone Baseplate Remove/Install Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the wiring harness -4-.

Installing

Install in reverse order of removal.

-- Be careful not to let the counterholder fall down in the instrument panel when installing the telephone baseplate.

Torque specifications: 2 Nm
