Telephone Microphone -R38-

The telephone microphone is located inside the Front interior lamp -W1- -arrow-.

Fig 1: Locating Telephone Microphone

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Removing

-- Remove the front interior lamp. Refer to FRONT INTERIOR LAMP, VEHICLES WITHOUT SUNROOF .

-- Release and disconnect electrical connector -3-.

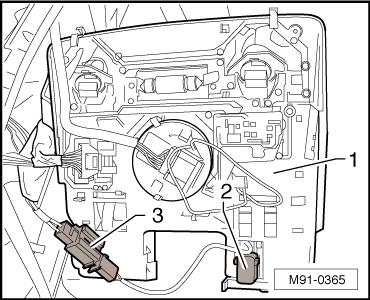

Fig 2: Identifying Telephone Microphone Electrical Connections And Interior Light Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The telephone microphone is clipped inside the front interior lamp -1- by three hooks.

-- Press three hooks -arrows- and remove the telephone microphone.

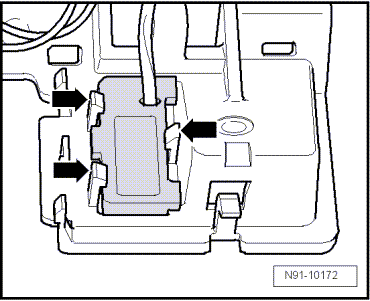

Fig 3: Locating Telephone Microphone Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installing

Install in reverse order of removal.
