Control Valve Body Assembly Disassemble

Reference: CONTROL VALVE BODY ASSEMBLY REMOVAL

Fig 1: Identifying Manual Valve

Courtesy of SUZUKI OF AMERICA CORP.

1. Remove the manual valve (337).
   Fig 2: Identifying Wiring Harness Clip And TCC Lock Up Pressure Control Solenoid Valve Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove the bolt (307), the wiring harness clip (318), and the TCC lock up pressure control solenoid valve retainer (319).
3. Remove the TCC lock up pressure control solenoid valve assembly (339).

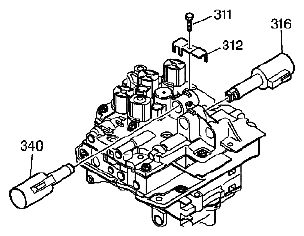

   Fig 3: Identifying Line Pressure Control Solenoid Valve And Shift Pressure Control Solenoid Valve

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove the bolt (311), and control valve body solenoid valve retainer (312).
5. Remove the line pressure control solenoid valve assembly (316) and the shift pressure control solenoid valve assembly (340).
   Fig 4: Identifying Solenoid Retaining Bolts And Shift Solenoid Valves

   Courtesy of SUZUKI OF AMERICA CORP.
6. Remove the 5 solenoid retaining bolts (1-301, 2-302, 2-307).
7. Remove the 5 shift solenoid valves (300, 303, 305, 308, 310), and the 5 shift solenoid valve O-ring seals (306).
   Fig 5: Identifying Front Control Valve Body Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove the 7 front control valve body bolts (1-304, 4-313, 2-314).

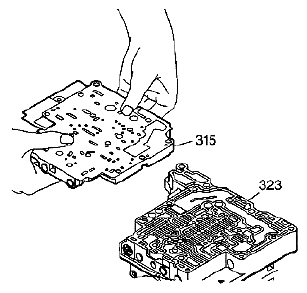

   Fig 6: Removing Front Control Valve Body Assembly

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove the front control valve body assembly (315), spacer plate and gaskets as an assembly from the middle control valve body assembly (323).
   Fig 7: Identifying Fluid Strainers And Accumulator Check Valve Assemblies

   Courtesy of SUZUKI OF AMERICA CORP.
10. Remove the following from the middle control valve body:
    • 3 fluid strainers (371)
    • 1 fluid strainer (372)
    • 2 accumulator check valve assemblies (353)
      Fig 8: Identifying Middle Control Valve Body Bolt

      Courtesy of SUZUKI OF AMERICA CORP.
11. Remove the bolt (304) from the middle control valve body.
    Fig 9: Turning Middle Control Valve Body

    Courtesy of SUZUKI OF AMERICA CORP.
12. Turn the middle control valve body over in order to remove the remaining bolts.

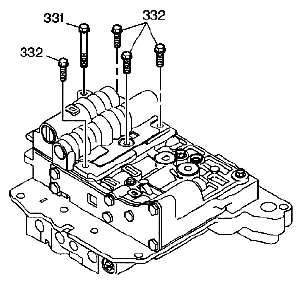

    Fig 10: Identifying Rear Control Valve Body Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
13. Remove the 5 bolts (331, 332) from the No. 2 rear control valve body assembly.

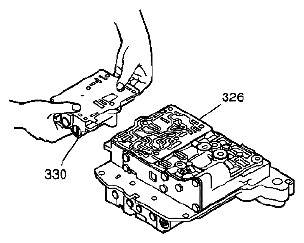

    Fig 11: Removing Rear Control Valve Body Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
14. Remove the No. 2 rear control valve body assembly (330), the spacer plate and the gaskets as an assembly from the rear control valve body assembly (326).

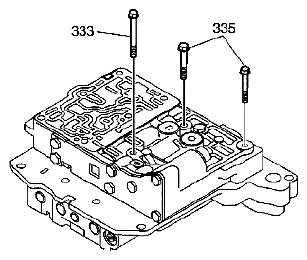

    Fig 12: Identifying Rear Control Valve Body Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
15. Remove the 3 rear control valve body bolts (333, 335).

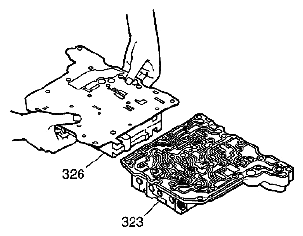

    Fig 13: Removing Rear Control Valve Body Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
16. Remove the rear control valve body assembly (326) from the middle control valve body assembly (323).

    Reference: CONTROL VALVE BODY DISASSEMBLE - MIDDLE

    Reference: CONTROL VALVE REAR BODY DISASSEMBLE

    Reference: NO. 2 REAR CONTROL VALVE BODY DISASSEMBLE

    Reference: CONTROL VALVE FRONT BODY DISASSEMBLE
