Control Valve Body Assembly Removal

Reference: WIRING HARNESS REMOVAL

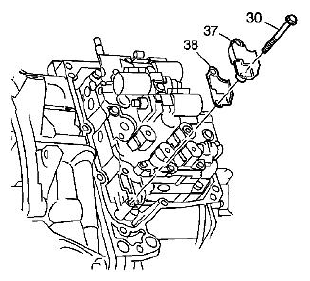

Fig 1: Identifying Control Valve Body Bolts, Control Valve Body Fluid Passage Cover And Gasket

Courtesy of SUZUKI OF AMERICA CORP.

1. Place the transmission in Neutral (N).
2. Remove the 2 control valve body bolts/screws (30), control valve body fluid passage cover (37) and gasket (38).
   Fig 2: Identifying Control Valve Body Mounting Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove the six 10 mm control valve body mounting bolts/screws (1-6).

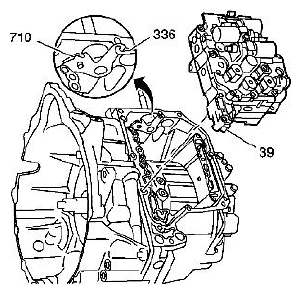

   Fig 3: Disconnecting Manual Shift Detent Lever Assembly From Manual Valve Link

   Courtesy of SUZUKI OF AMERICA CORP.
4. While holding the control valve body assembly, disconnect the manual shift detent lever assembly (710) from the manual valve link (336).
5. Move the detent lever assembly to the neutral position for ease of removing the manual valve.
6. Remove the control valve body assembly (39).

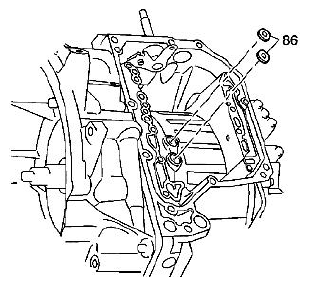

   Fig 4: Identifying Case Fluid Passage Seals

   Courtesy of SUZUKI OF AMERICA CORP.
7. Remove the 2 case fluid passage seals (86).

   Reference: CONTROL VALVE BODY ASSEMBLY DISASSEMBLE
