Control Valve Front Body Disassemble

Reference: CONTROL VALVE BODY ASSEMBLY DISASSEMBLE

Fig 1: Identifying Front Control Valve Body Spacer Plate And Gaskets
G05470329Courtesy of SUZUKI OF AMERICA CORP.
WARNING: Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
  1. Remove the gasket (322).
  2. Remove the front control valve body spacer plate (321).
  3. Remove the gasket (320).

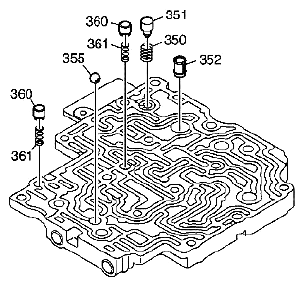

    Fig 2: Identifying Ball Check Valve, Pressure Relief Valve, Check Valves And Fluid Strainer
    G05470330Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the ball check valve (355).
  5. Remove the fluid strainer (352).
  6. Remove the pressure relief valve (351).
  7. Remove the pressure relief valve spring (350).
  8. Remove the 2 check valves (360).
  9. Remove the 2 check valve compression springs (361).

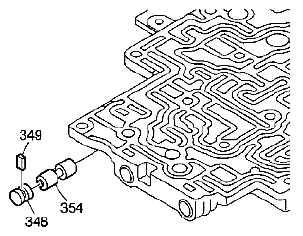

    Fig 3: Identifying Forward Clutch Control Valve And Solenoid Modulator Valve Bore Plug
    G05470331Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove the sleeve/bore plug retainer (349).
  11. Remove the solenoid modulator valve bore plug (348).
  12. Remove the forward clutch (C1) control valve (354).

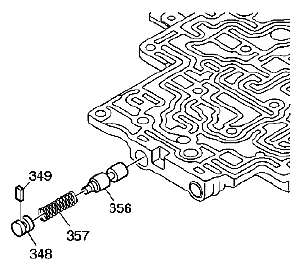

    Fig 4: Identifying Sleeve/Bore Plug Retainer, Neutral Relay Valve And Solenoid Modulator Valve Bore Plug
    G05470332Courtesy of SUZUKI OF AMERICA CORP.
  13. Remove the sleeve/bore plug retainer (349).
  14. Remove the solenoid modulator valve bore plug (348).
  15. Remove the neutral relay valve spring (357).
  16. Remove the neutral relay valve (356).
    Fig 5: Identifying Second Coast Clutch Control Valve And Second Coast Clutch Control Valve Spring
    G05470333Courtesy of SUZUKI OF AMERICA CORP.
  17. Remove the sleeve/bore plug retainer (349).
  18. Remove the solenoid modulator valve bore plug (348).
  19. Remove the second coast clutch (B1) control valve (359).
  20. Remove the second coast clutch (B1) control valve spring (358).

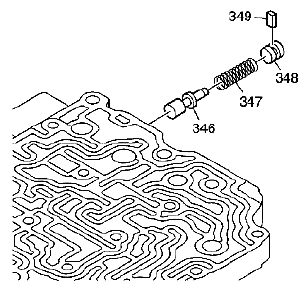

    Fig 6: Identifying Solenoid Modulator Valve And Solenoid Modulator Valve Bore Plug
    G05470334Courtesy of SUZUKI OF AMERICA CORP.
  21. Remove the sleeve/bore plug retainer (349).
  22. Remove the solenoid modulator valve bore plug (348).
  23. Remove the solenoid modulator valve spring (347).
  24. Remove the solenoid modulator valve (346).
