Control Valve Rear Body Disassemble

Reference: CONTROL VALVE BODY ASSEMBLY DISASSEMBLE

Fig 1: Identifying Spacer Plate And Gasket Assembly
G05470297Courtesy of SUZUKI OF AMERICA CORP.
WARNING: Valve springs can be tightly compressed. Use care when removing retainers and plugs. Personal injury could result.
  1. Remove the spacer plate and gasket assembly (324) from the rear control valve body assembly (326).

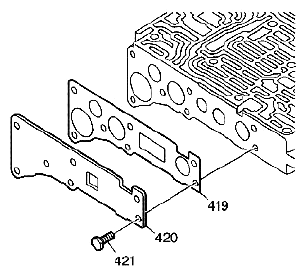

    Fig 2: Identifying Rear Valve Body Cover Plate Bolts
    G05470298Courtesy of SUZUKI OF AMERICA CORP.
  2. Remove the 7 rear valve body cover plate bolts (421).
  3. Remove the rear valve body cover plate (420).
  4. Remove the rear valve body cover plate gasket (419).

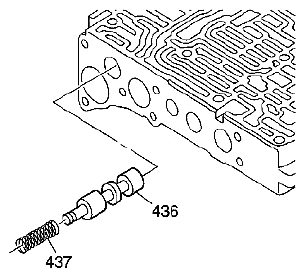

    Fig 3: Identifying Secondary Regulator Valve Spring And Secondary Regulator Valve
    G05470299Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the secondary regulator valve spring (437).
  6. Remove the secondary regulator valve (436).

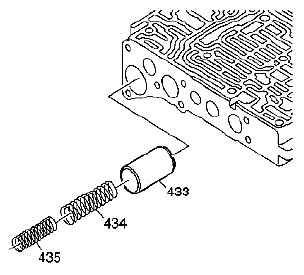

    Fig 4: Identifying Line Pressure Control (SLT) Accumulator Piston And Piston Springs
    G05470300Courtesy of SUZUKI OF AMERICA CORP.
  7. Remove the line pressure control (SLT) accumulator piston spring - inner (435).
  8. Remove the line pressure control (SLT) accumulator piston spring - outer (434).
  9. Remove the line pressure control (SLT) accumulator piston (433).
    Fig 5: Identifying Shift Pressure Control Valve And Shift Pressure Control Valve Sleeve
    G05470301Courtesy of SUZUKI OF AMERICA CORP.
  10. Remove the shift pressure control valve plunger sleeve (432).
  11. Remove the shift pressure control valve plunger (431).
  12. Remove the shift pressure control valve (430).
  13. Remove the shift pressure control valve spring (429).
  14. Remove the shift pressure control valve sleeve (428).

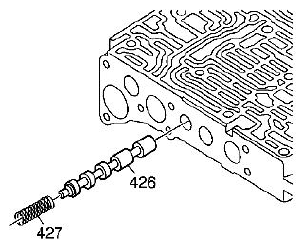

    Fig 6: Identifying M2 Shift Valve And M2 Shift Valve Spring
    G05470302Courtesy of SUZUKI OF AMERICA CORP.
  15. Remove the M2 shift valve spring (427).
  16. Remove the M2 shift valve (426).
    Fig 7: Identifying Shift Pressure Relay Valve And Shift Pressure Relay Valve Spring
    G05470303Courtesy of SUZUKI OF AMERICA CORP.
  17. Remove the shift pressure relay valve spring (425).
  18. Remove the shift pressure relay valve (424).
    Fig 8: Identifying Third Gear Band Control Valve And Third Gear Band Control Valve Spring
    G05470304Courtesy of SUZUKI OF AMERICA CORP.
  19. Remove the third gear band (B4) control valve (423).
  20. Remove the third gear band (B4) control valve spring (422).

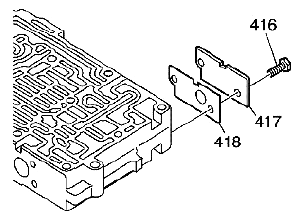

    Fig 9: Identifying Rear Valve Body Cover Plate Bolts
    G05470305Courtesy of SUZUKI OF AMERICA CORP.
  21. Remove the 2 rear valve body cover plate bolts (416).
  22. Remove the rear valve body cover plate (417).
  23. Remove the rear valve body cover plate gasket (418).
    Fig 10: Identifying Lock Up Relay Valve And Lock Up Relay Control Valve Sleeve
    G05470306Courtesy of SUZUKI OF AMERICA CORP.
  24. Remove the lock up relay control valve sleeve (412).
  25. Remove the lock up relay control valve plunger (413).
  26. Remove the lock up relay valve spring (414).
  27. Remove the lock up relay valve (415).

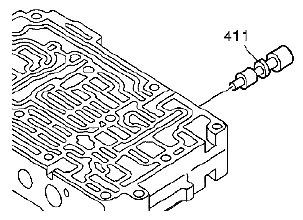

    Fig 11: Identifying 1-2 Reverse Clutch Control Valve
    G05470307Courtesy of SUZUKI OF AMERICA CORP.
  28. Remove the 1-2 reverse clutch (B5) control valve (411).

    Reference: CONTROL VALVE REAR BODY ASSEMBLE
