Front Seat Cushion Cover and Pad Replacement

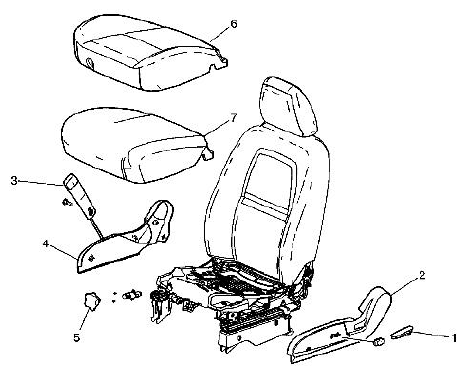

Fig 1: Identifying Front Seat Cushion Cover And Pad Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT NAME CHART

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to FRONT SEAT REPLACEMENT - BUCKET .
1	Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove.
2	Front Seat Outer Adjuster Finish Cover Refer to FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (NON FOLD FLAT) or FRONT SEAT CUSHION OUTER TRIM PANEL REPLACEMENT (FOLD FLAT) .
3	Front Seat Belt Buckle Refer to FRONT SEAT BELT BUCKLE REPLACEMENT .
4	Front Seat Inner Adjuster Finish Panel Refer to FRONT SEAT CUSHION INNER TRIM PANEL REPLACEMENT (NON FOLD FLAT) or FRONT SEAT CUSHION INNER TRIM PANEL REPLACEMENT (FOLD FLAT) .
5	Front Seat Lumbar Support Actuator Knob Procedure Adjust the lumbar knob until the lumbar is in the setting of the least support. Remove the lumbar knob by pulling firmly away from the seat.
6	Front Seat Cushion Cover Procedure Remove the seat cushion frame bolts and seat cushion assembly from the seat. Disconnect the J-hook retainers. Disengage the J-strip at the rear of the cushion. Remove the seat cushion cover from the pad by carefully disengaging the hook and loop retainers.
7	Front Seat Cushion Pad Procedure Disconnect the electrical connector, if equipped.
