Front Seat Belt Buckle Replacement

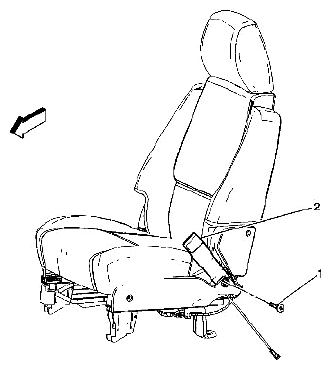

Fig 1: Identifying Front Seat Belt Buckle Bolt And Front Seat Belt Buckle

Courtesy of SUZUKI OF AMERICA CORP.

FRONT SEAT BELT BUCKLE COMPONENTS REFERENCE

Callout	Component Name
1	Front Seat Belt Buckle Bolt (Qty: 1) CAUTION: Refer to FASTENER NOTICE . Tightening torque 45 N.m (33 lb ft)
2	Front Seat Belt Buckle Disconnect the electrical connector under the seat. Slide the buckle assembly upwards and out from between the seat cushion and the seat cushion inner trim panel.
