Front Seat Cushion Inner Trim Panel Replacement (Fold Flat)

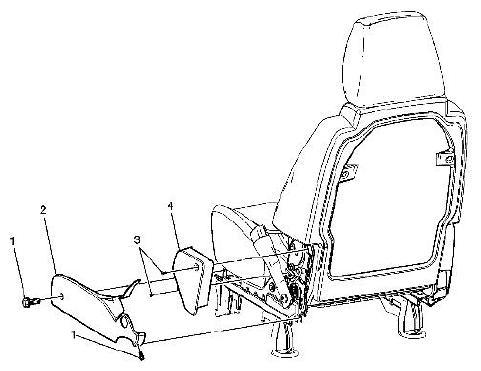

Fig 1: Identifying Front Seat Belt Buckle And Front Seat Inner Adjuster Finish Panel With Screw (Fold Flat)
COMPONENT NAME CHART
| Callout | Component Name |
|---|---|
| 1 | Front Seat Inner Adjuster Lower Finish Cover Screw (Qty: 2)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 2 N.m (18 lb in) |
| 2 | Front Seat Inner Adjuster Lower Finish Cover |
| 3 | Seat Inner Adjuster Upper Finish Cover Screw (Qty: 2) Tightening torque 2 N.m (18 lb in) |
| 4 | Seat Inner Adjuster Upper Finish Cover |
