Front Seat Cushion Outer Trim Panel Replacement (Non Fold Flat)

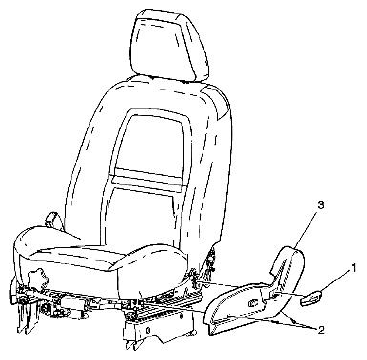

Fig 1: Identifying Front Seat Recliner, Front Seat Cushion Outer Adjuster Finish Cover And Screw (Non Fold Flat)
COMPONENT NAME CHART
| Callout | Component Name |
|---|---|
| 1 | Front Seat Recliner Handle Tip: Pull firmly forward on the handle to remove. |
| 2 | Front Seat Outer Adjuster Finish Cover Screw (Qty: 2)
CAUTION:
Refer to FASTENER NOTICE
. Tightening torque 2 N.m (18 lb in) |
| 3 | Front Seat Outer Adjuster Finish Cover Tip: Disconnect the electrical connector. |
