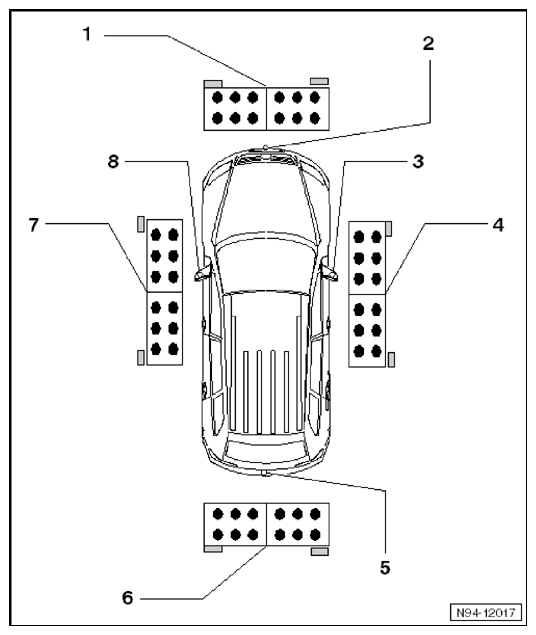

19.8.4 Peripheral Camera Calibration Device - VAS6350/6-, Lay Out
- Overview for calibrating the Front Peripheral Camera - R243-
- Preparation work for calibrating the Front Peripheral Camera - R243-. Refer to 19.8.7 Front Peripheral Camera - R243-, Preparing For Calibration
- Front Peripheral Camera - R243- Calibrating. Refer to 19.8.8 Front Peripheral Camera - R243- Calibrating
- Front Peripheral Camera - R243-
- Removing and installing. Refer to 19.4 Front Peripheral Camera - R243-
- Right Peripheral Camera - R245- inside the exterior mirror
- Removing and installing. Refer to 19.3 Right Peripheral Camera - R245- Or Left Peripheral Camera - R244-
- Positioning for calibrating the Right Peripheral Camera - R245-
- Preparation work for calibrating the Right Peripheral Camera - R245-. Refer to 19.8.5 Peripheral Camera in Exterior Mirror, Preparing for Calibration
- Right Peripheral Camera - R245-, Calibrating. Refer to 19.8.6 Peripheral Camera in Exterior Mirror, Calibrating
- Rear Peripheral Camera - R246-
- Removing and installing. Refer to 19.5 Rear Peripheral Camera - R246-
- Positioning for calibrating the Rear Peripheral Camera - R246-
- Preparation Work for calibrating the Rear Peripheral Camera - R246-. Refer to 19.8.9 Rear Peripheral Camera - R246-, Preparing for Calibration
- Rear Peripheral Camera - R246- calibrating. Refer to 19.8.10 Rear Peripheral Camera - R246- Calibrating
- Positioning for calibrating the Left Peripheral Camera - R244-
- Preparation Work for calibrating the Left Peripheral Camera - R244-. Refer to 19.8.5 Peripheral Camera in Exterior Mirror, Preparing for Calibration
- Left Peripheral Camera - R244-, Calibrating. Refer to 19.8.6 Peripheral Camera In Exterior Mirror, Calibrating
- Left Peripheral Camera - R244-
- Removing and installing. Refer to 19.3 Right Peripheral Camera - R245- Or Left Peripheral Camera - R244-
