Instrument Panel Lower Trim Panel Replacement - Left Side

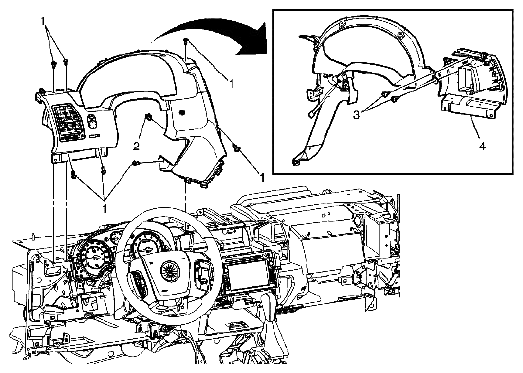

Fig 1: Identifying Instrument Panel Lower Trim Panel - Left Side

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the knee bolster assembly. Refer to KNEE BOLSTER REPLACEMENT . Remove the instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT . Remove the left console trim panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - LEFT SIDE . Remove the steering column trim panels. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
1	Lower Instrument Panel Trim Panel Assembly Screw (Qty: 7) CAUTION: Refer to FASTENER NOTICE . Procedure  Disconnect the electrical connections. Tip:  The left lower trim panel, center lower trim panel, and the cluster trim bezel are removed as an assembly. Tightening torque  2 N.m (18 lb in)
2	Retainer Clip (Qty: 2)
3	Instrument Panel Lower Left Trim Panel Assembly Screw (Qty: 3). Tightening torque  2 N.m (18 lb in)
4	Instrument Panel Lower Left Trim Panel Assembly Procedure  If replacing the left lower trim panel, transfer all necessary components.
