Front Floor Console Side Trim Panel Replacement - Left Side

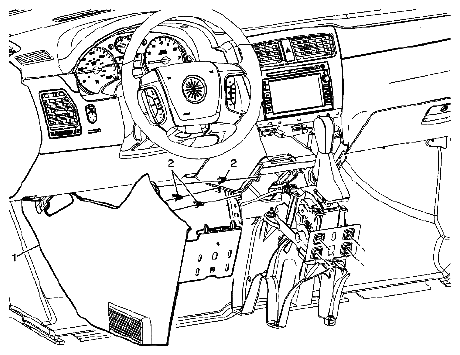

Fig 1: Identifying Console Trim Panel Assembly And Retainer Clip

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR CONSOLE SIDE TRIM PANEL COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure  Remove the Right Console Trim Panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - RIGHT SIDE .
1	Console Trim Panel Assembly - Left
2	Retainer Clips (Qty 3)

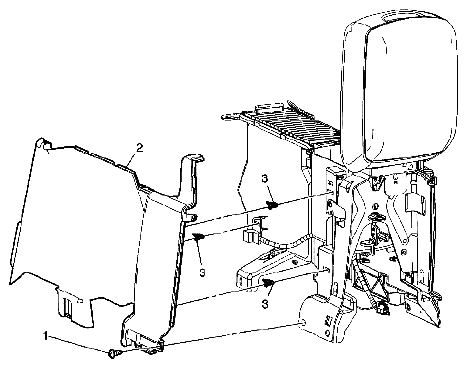

Fig 1: Identifying Console Side Trim Panel Screw, Retainer Clip And Console Side Trim Panel

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR CONSOLE SIDE TRIM PANEL COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the console. Refer to CONSOLE REPLACEMENT . Remove the console upper trim plate. Refer to FRONT FLOOR UPPER CONSOLE TRIM PLATE REPLACEMENT .
1	Console Side Trim Panel Screw (Qty: 1) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Console Side Trim Panel - Left
3	Retainer Clip (Qty: 3)
