Knee Bolster Replacement

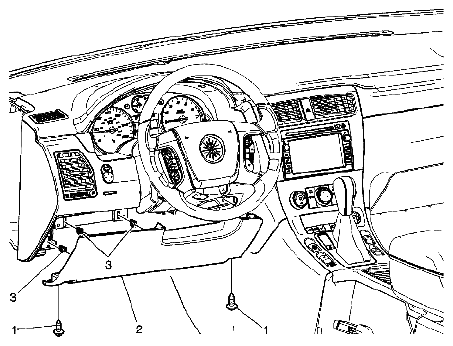

Fig 1: Identifying Knee Bolster
G05471120Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS NAME REFERENCE

Callout Component Name
1 Instrument Panel Knee Bolster Screw (Qty: 2)
CAUTION: Refer to FASTENER NOTICE .

Tightening torque
2 N.m (18 lb in)
2 Instrument Panel Knee Bolster
3 Retainer Clip (Qty 4)
