Instrument Panel Lower Center Trim Panel Replacement

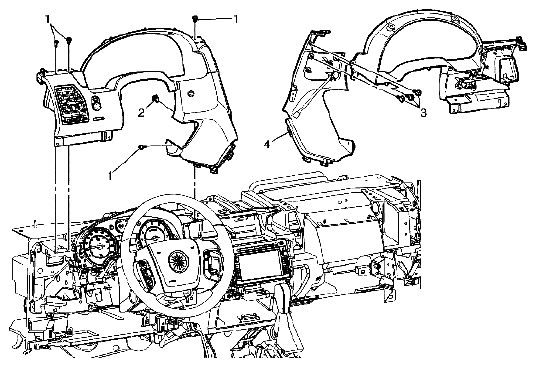

Fig 1: Identifying Instrument Panel Lower Center Trim Panel Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the knee bolster assembly. Refer to KNEE BOLSTER REPLACEMENT . Remove the instrument panel upper trim panel. Refer to INSTRUMENT PANEL UPPER TRIM PANEL REPLACEMENT . Remove the left console trim panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - LEFT SIDE .
1	Lower Instrument Panel Trim Panel Assembly Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . The left lower trim panel, center lower trim panel, and the cluster trim bezel are removed as an assembly. Disconnect the electrical connections. Tightening torque  2 N.m (18 lb in)
2	Retainer Clip (Qty: 2)
3	Instrument Panel Center Lower Trim Panel Assembly Screw (Qty: 3) Tightening torque  2 N.m (18 lb in)
4	Instrument Panel Center Lower Trim Panel Assembly Tip:  If replacing the center lower trim panel, transfer all necessary components.
