Front Floor Console Side Trim Panel Replacement - Right Side

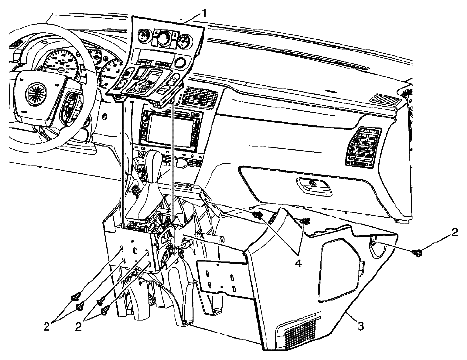

Fig 1: Identifying Front Floor Console Side Trim Panel - Right Side

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR CONSOLE SIDE TRIM PANEL COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure  Remove the floor console. Refer to CONSOLE REPLACEMENT
1	Instrument Panel Lower Brace Bezel Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT
2	Console Trim Panel Assembly Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
3	Console Trim Panel Assembly - Right
4	Retainer Clips (Qty: 3)

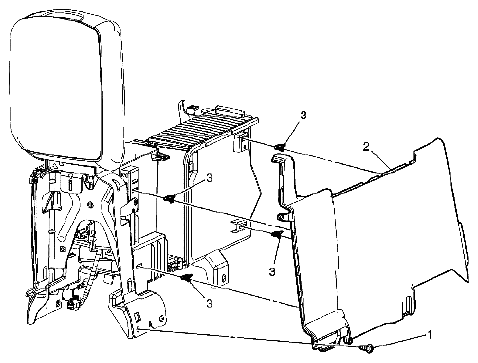

Fig 1: Identifying Console Side Trim Panel Screw, Console Side Trim Panel And Retainer Clip

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR CONSOLE SIDE TRIM PANEL COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the console. Refer to CONSOLE REPLACEMENT . Remove the console upper trim plate. Refer to FRONT FLOOR UPPER CONSOLE TRIM PLATE REPLACEMENT .
1	Console Side Trim Panel Screw (Qty: 1) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Console Side Trim Panel - Right
3	Retainer Clip (Qty: 4)
