Console Replacement

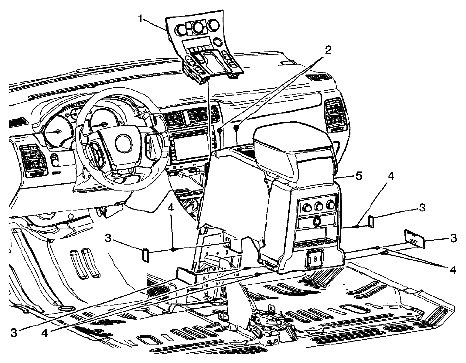

Fig 1: Identifying Console Components

Courtesy of SUZUKI OF AMERICA CORP.

CONSOLE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front seats. Refer to FRONT SEAT REPLACEMENT - BUCKET .
1	Instrument Panel Lower Brace Bezel Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
2	Console Screw (Qty: 2) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
3	Console Bolt Cover (Qty: 4) Procedure Use a flat-bladed plastic trim tool to remove the covers.
4	Console Bolt (Qty: 6) Tightening torque 9 N.m (80 lb in)
5	Console Assembly Procedures Pull the parking brake lever up to the fully engaged position. Disconnect the electrical connections to the console assembly. With the aid of an assistant remove the console from the vehicle.
