Front Floor Upper Console Trim Plate Replacement

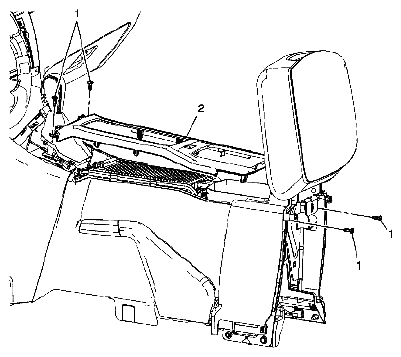

Fig 1: Identifying Console Trim Plate Screw And Console Trim Plate Assembly

Courtesy of SUZUKI OF AMERICA CORP.

FRONT FLOOR UPPER CONSOLE TRIM PLATE COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the instrument panel lower brace bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT . Remove the console rear trim plate. Refer to CONSOLE REAR TRIM PLATE REPLACEMENT
1	Console Trim Plate Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
2	Console Trim Plate Assembly - Upper
