Instrument Panel Lower Brace Bezel Replacement

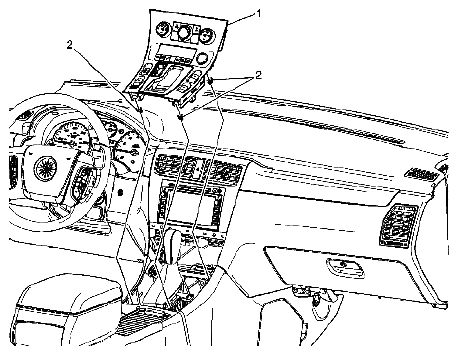

Fig 1: Identifying Instrument Panel Lower Brace Bezel
G05471119Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS NAME REFERENCE

Callout Component Name
Preliminary Procedures
  1. Engage the Parking Brake.
  2. Place the shifter in the neutral position.
  3. Remove the Shifter Knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .
1 Instrument Panel Lower Brace Bezel Assembly
Procedure
  1. Use a flat bladed plastic trim tool in order to release the bezel from the I/P.
  2. Disconnect the electrical connections.
  3. When replacing the lower I/P brace bezel, transfer all necessary components.
2 Retainer Clips (Qty 4)
