Instrument Panel Installation

  1. Position the instrument panel in the vehicle.
  2. Connect the instrument panel electrical connectors.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  3. Install the bolts securing the sides of the instrument panel to the body.
    1. Tighten the instrument panel-to-body bolts to 22 N.m (16 lb-ft).

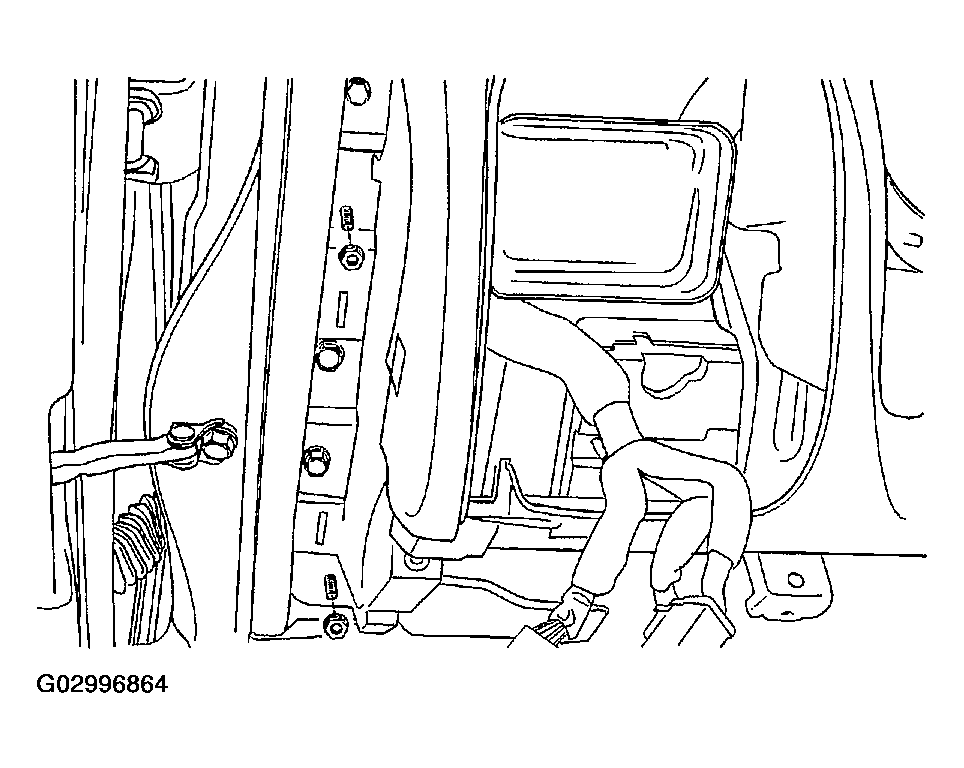

    Fig 1: Installing Bolts Securing Instrument Panel
    G02996864Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the fixing screws securing the instrument panel.

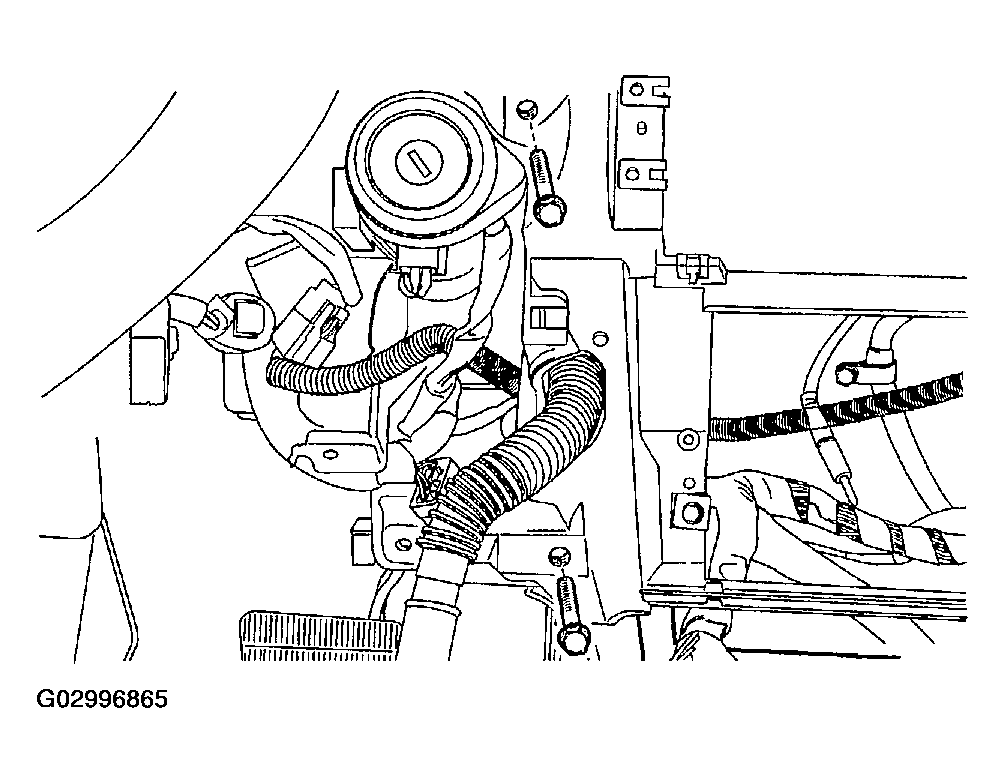

    Fig 2: Installing Screws Securing Instrument Panel
    G02996865Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the instrument panel bolts behind the glove box brace.

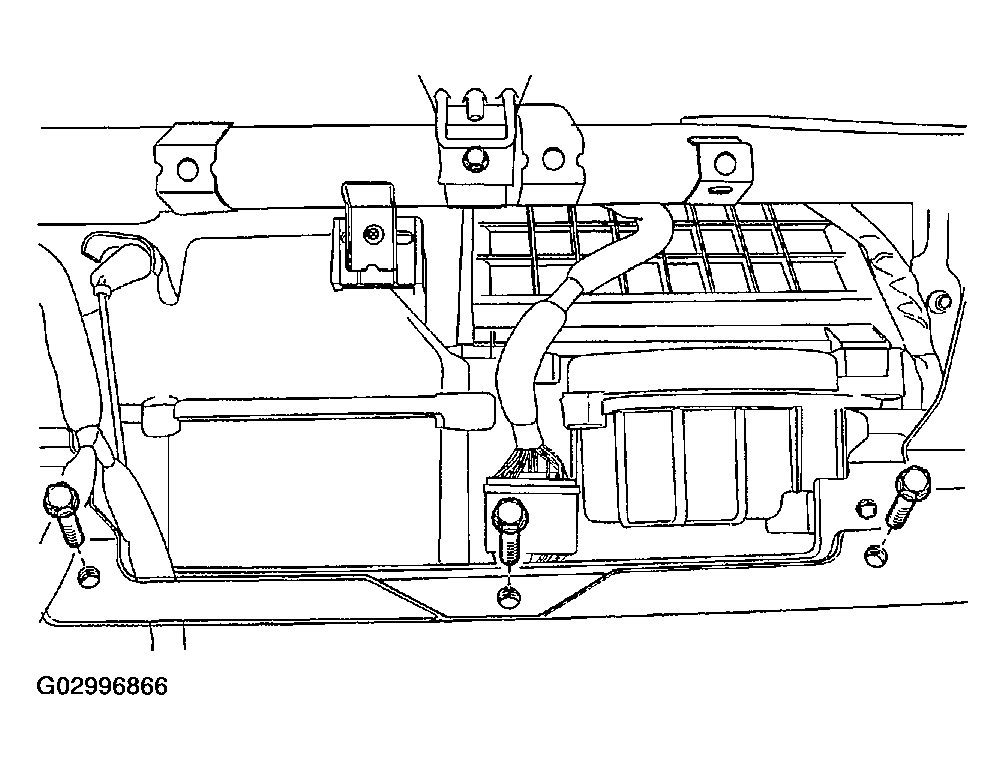

    Fig 3: Installing Instrument Panel Bolts Behind Glove Box Brace
    G02996866Courtesy of SUZUKI OF AMERICA CORP.
  6. Install the instrument panel bolts below the windshield.

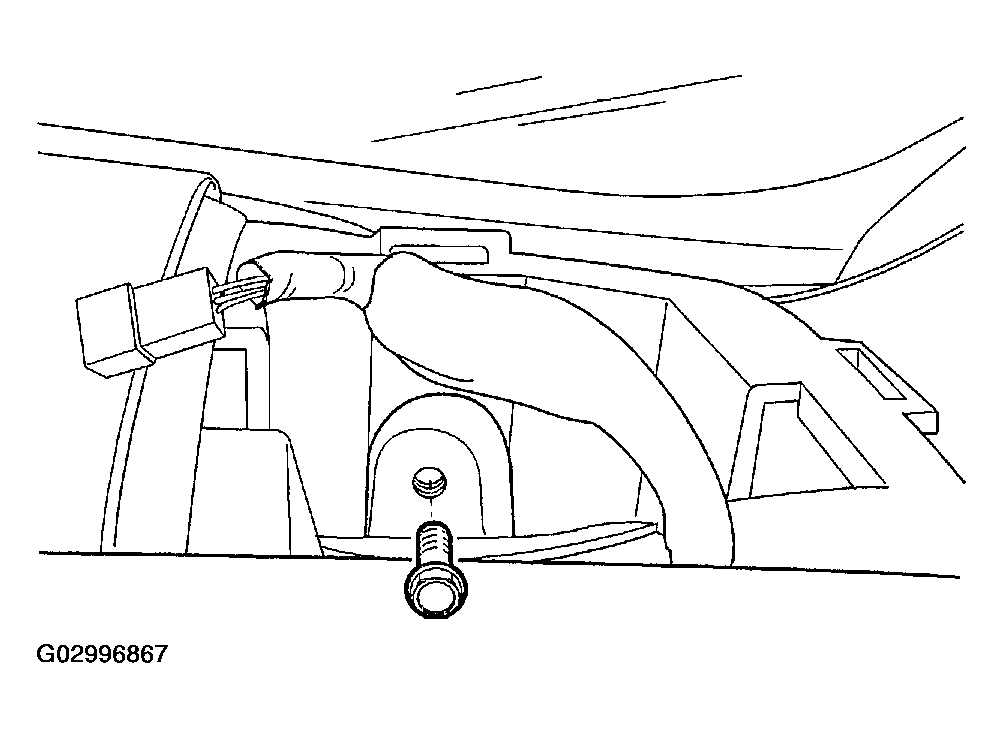

    Fig 4: Installing Instrument Panel Bolts Below Windshield
    G02996867Courtesy of SUZUKI OF AMERICA CORP.
  7. Raise the steering column.
  8. Connect the steering column electrical connector.
  9. Install the nuts and the bolts securing the steering column.
    1. Tighten the steering column nuts to 22 N.m (16 lb-in).
    2. Tighten the steering column bolts to 22 N.m (16 lb-in).

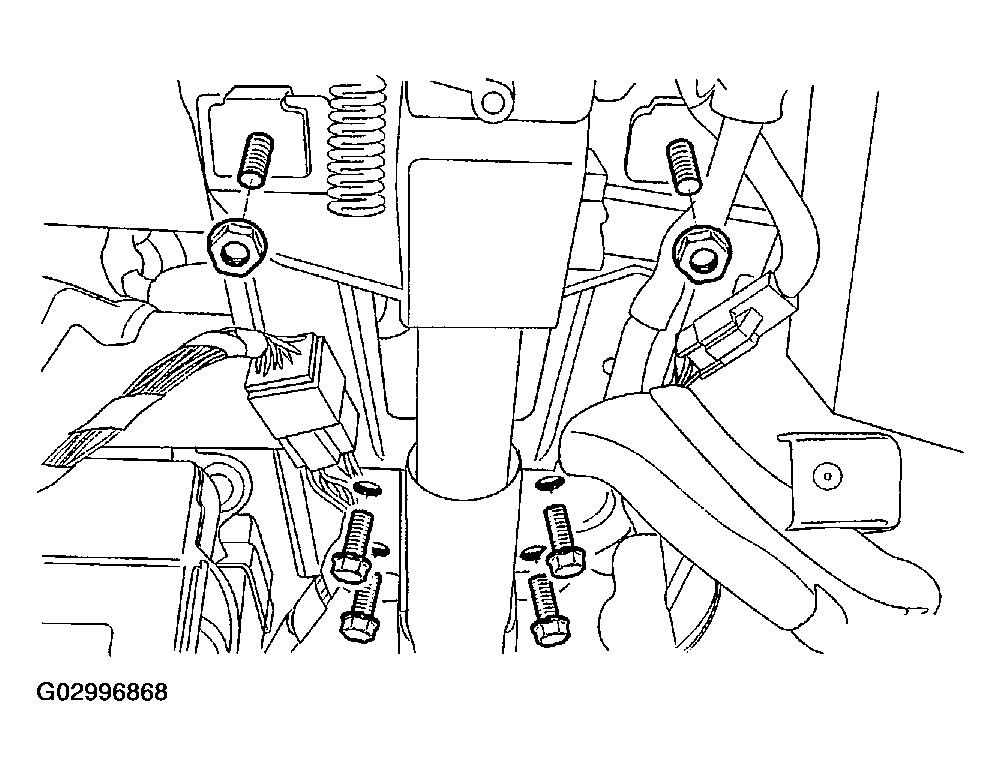

    Fig 5: Installing Nuts/Bolts Securing Steering Column
    G02996868Courtesy of SUZUKI OF AMERICA CORP.
  10. Install the instrument panel fuse block with the screw.
  11. Install the instrument panel side covers with the screws.

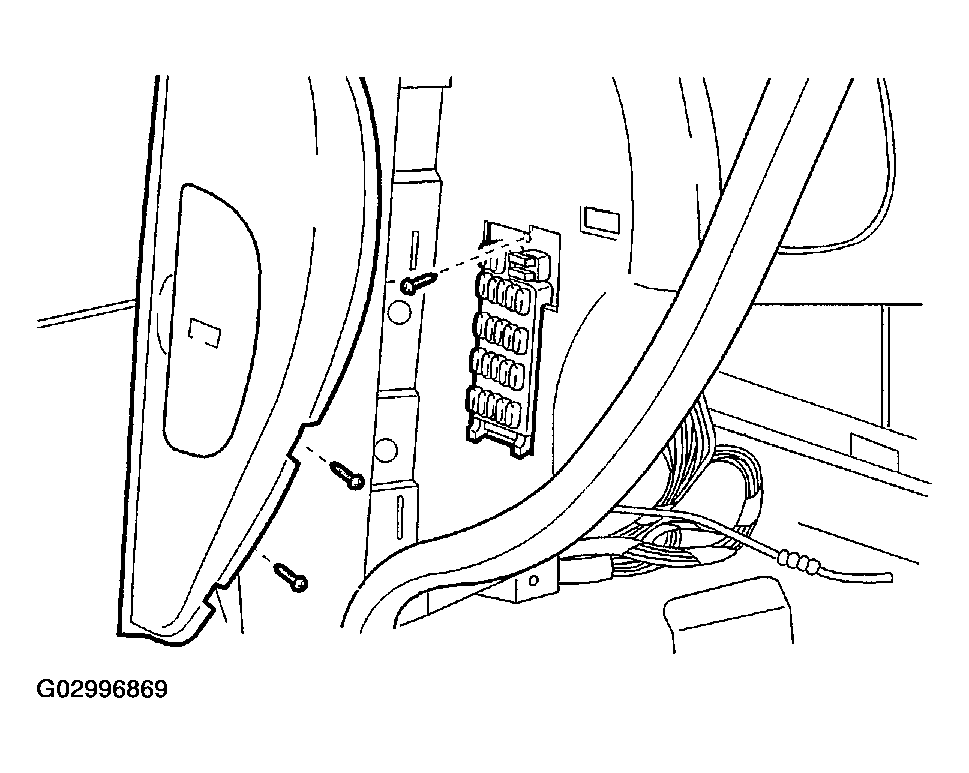

    Fig 6: Installing Instrument Panel Side Covers
    G02996869Courtesy of SUZUKI OF AMERICA CORP.
  12. Install the knee bolsters. Refer to DRIVER'S SIDE KNEE BOLSTER INSTALLATION .
  13. Connect the glove box housing electrical connectors.
  14. Install the screws and the glove box housing.
  15. Install the glove box. Refer toGlove Box Installation  .
  16. Install the kick panels. Refer to KICK PANEL INSTALLATION .
  17. Install the instrument cluster. Refer to Instrument Cluster Installation  .
  18. Install the automatic temperature controls assembly.

    Refer to AUTOMATIC TEMPERATURE CONTROL ASSEMBLY INSTALLATION .

  19. Install the instrument cluster trim panel. Refer to Instrument Cluster Trim Panel Installation  .
  20. Install the instrument cluster dimmer switch assembly. Refer to Instrument Cluster Dimmer / Headlamp Leveling Switch Installation  .
  21. Install the tweeter speakers and the stereo cassette AM/FM radio. Refer to STEREO CASSETTE AM/FM RADIO INSTALLATION .
  22. Install the sun sensor and the automatic temperature controls assembly. Refer to SUN SENSOR INSTALLATION .
  23. Install the floor console. Refer to FLOOR CONSOLE INSTALLATION .
  24. Connect the negative battery cable.

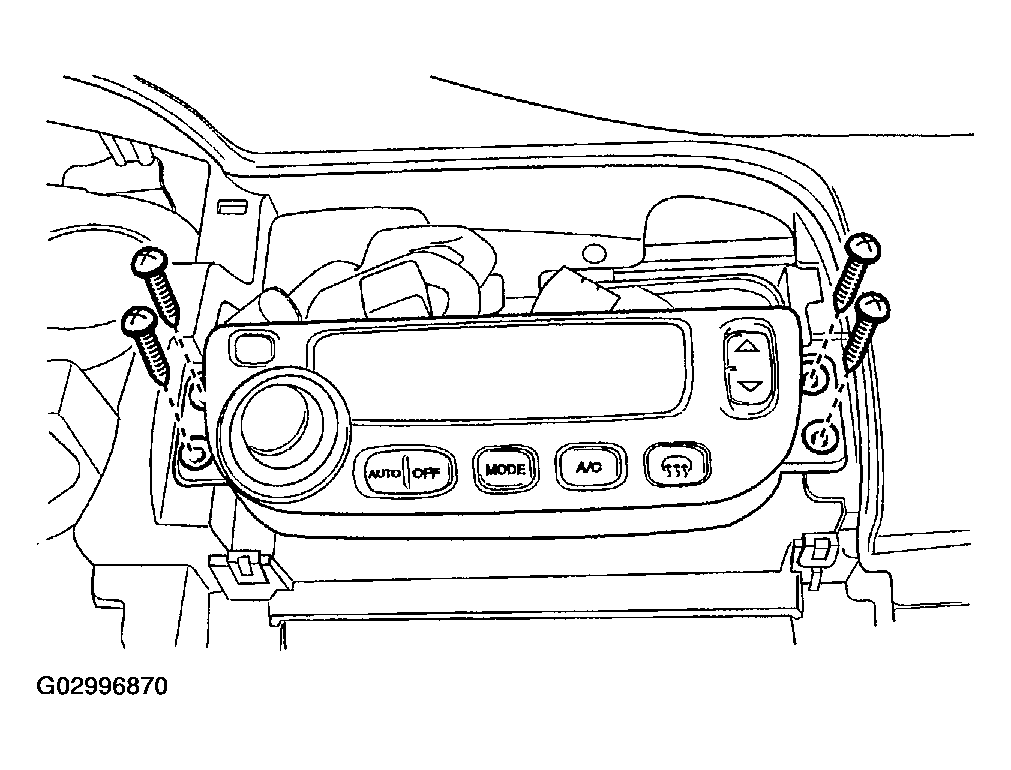

Fig 7: Installing Automatic Temperature Controls Assembly
