Instrument Cluster Trim Panel Installation

  1. Connect the electrical connectors.
  2. Install the instrument cluster trim panel with the screws.
    1. Tighten the instrument cluster trim panel screws to 3 N.m (27 lb-in).
  3. Install the audio system trim plate.

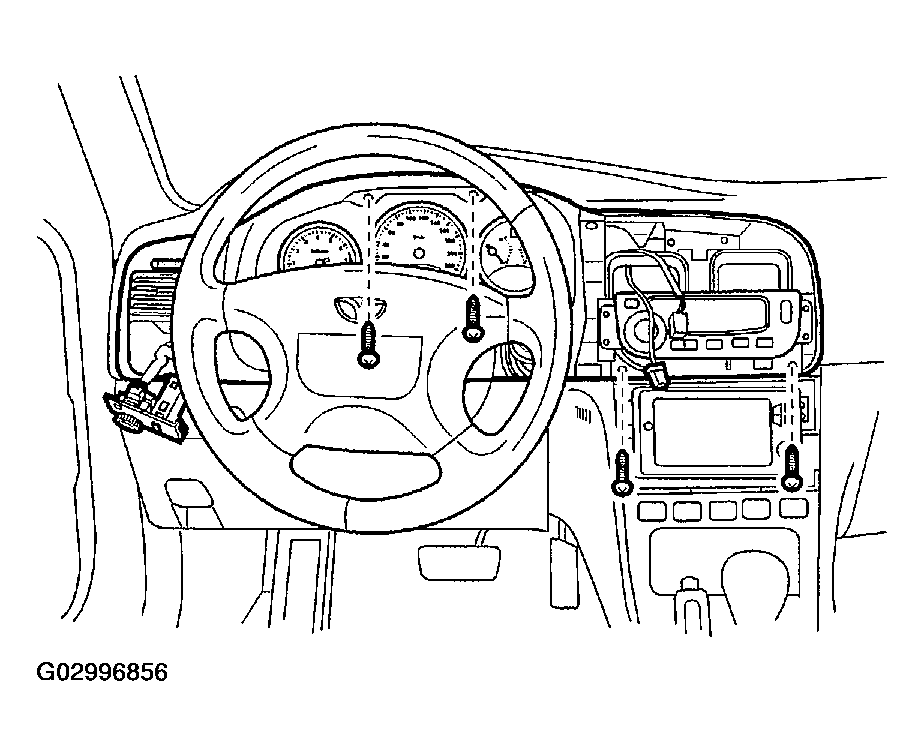

Fig 1: Installing Audio system Trim Plate
G02996856Courtesy of SUZUKI OF AMERICA CORP.
