Driver's Side Knee Bolster Installation

Install the knee bolster with the bolts.
1. Tighten the driver's side knee bolster mounting bolts to 10 N.m (89 lb-in).
Fig 1: Installing Knee Bolster
Courtesy of SUZUKI OF AMERICA CORP.
Install the instrument panel under cover.
Connect the hood release cable to the hood latch release handle.
Install the coin storage and the screws.

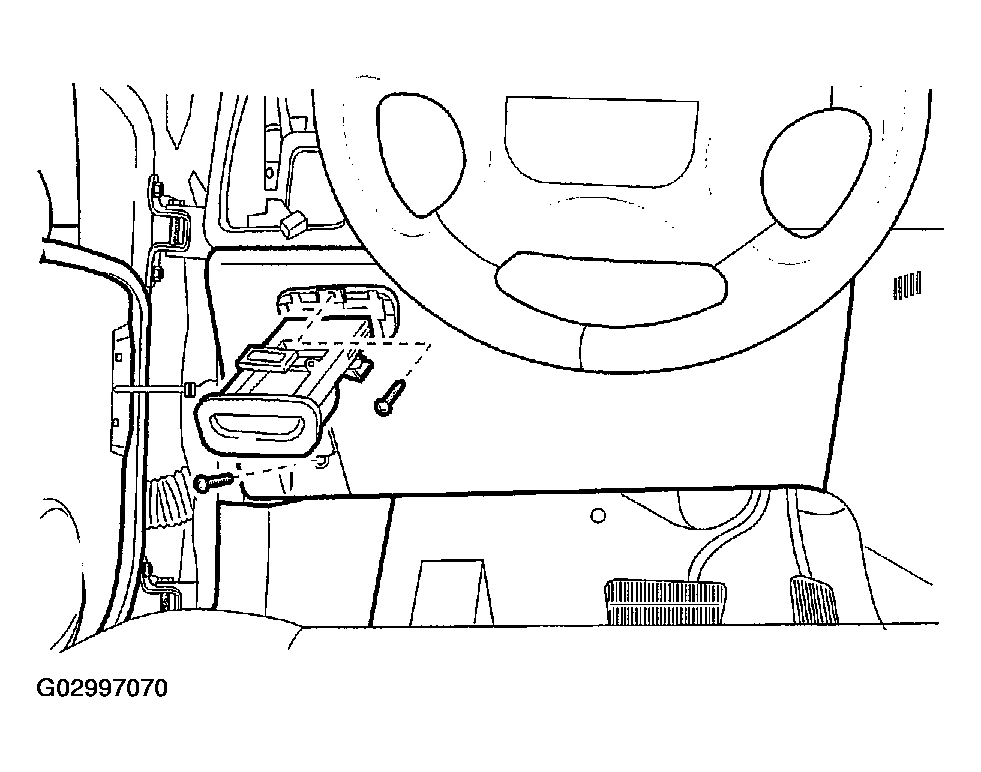

Fig 2: Installing Instrument Panel Under Cover

Courtesy of SUZUKI OF AMERICA CORP.
