Steering Column Installation

  1. Install the steering column shaft to the universal joint with bolt.
    1. Tighten the steering column shaft securing bolt to the universal joint pinch to 25 N.m (18 lb-ft).

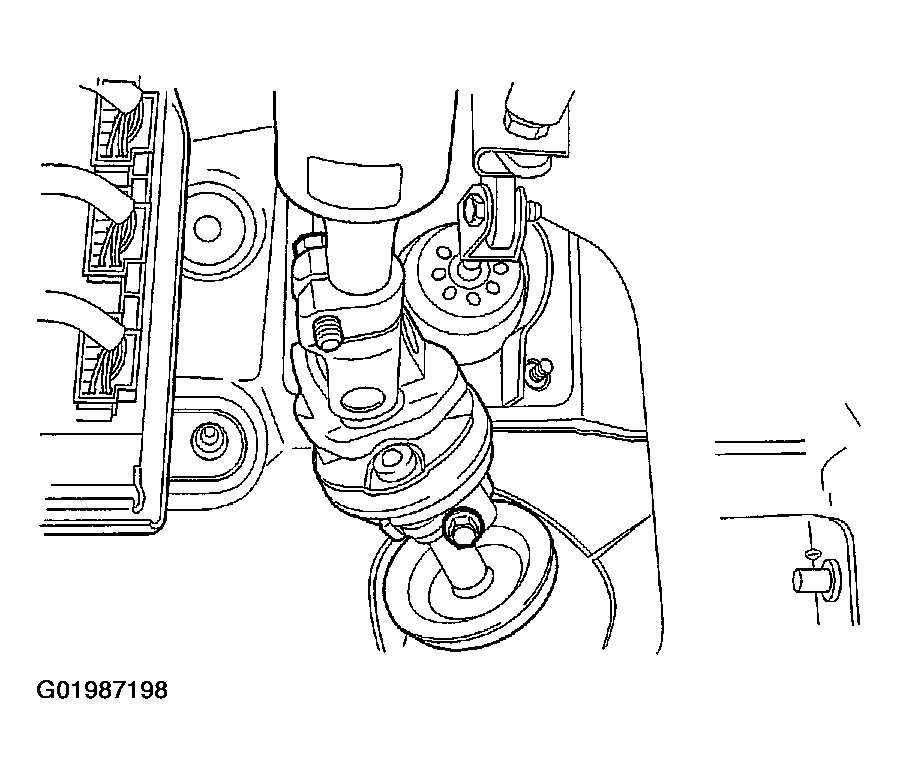

    2. Fig 1: Installing Steering Column Shaft
    G01987198Courtesy of SUZUKI OF AMERICA CORP.
  2. Install the ignition switch retaining screw.
    1. Tighten the ignition switch retaining screw to 2.5 N.m (22 lb-ft).

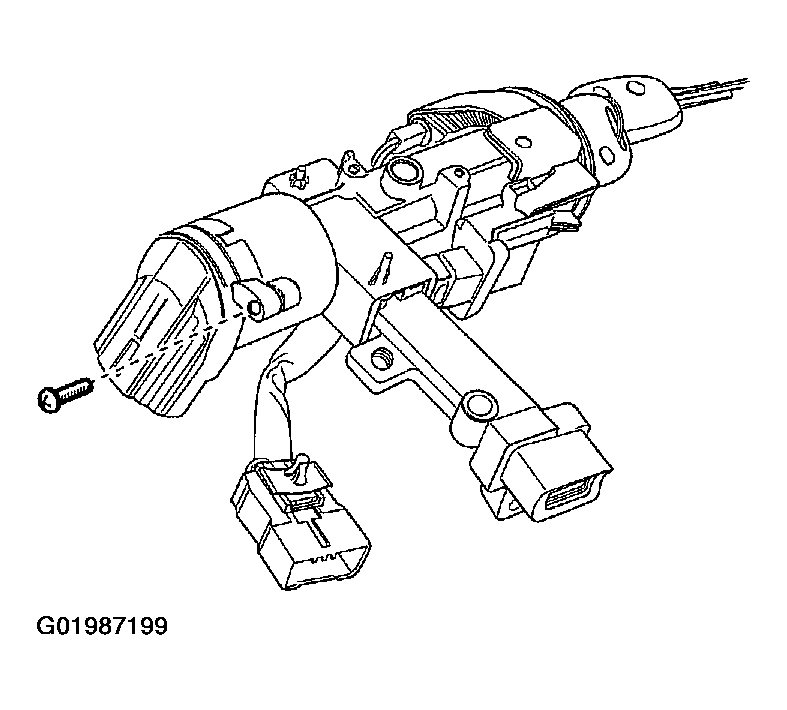

    3. Fig 2: Installing Ignition Switch Retaining Screw
    G01987199Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the wiring to the ignition switch.
  4. Connect the head amplifier connector, airbag connector and the other connector which are connected to steering wheel.
  5. Install the steering column jacket assembly securing bolts and nuts.
    1. Tighten the steering column jacket assembly securing bolts and nuts to 22 N.m (16 lb-ft).
    6. Fig 3: Tightening Steering Column Jacket Assembly
    G01987200Courtesy of SUZUKI OF AMERICA CORP.
  6. Install the instrument cluster trim panel. Refer to INSTRUMENT CLUSTER TRIM PANEL INSTALLATION .
  7. Install the knee bolster. Refer to DRIVER'S SIDE KNEE BOLSTER INSTALLATION .
  8. Install the instrument panel under cover. Refer to INSTRUMENT PANEL INSTALLATION .
  9. Install the steering wheel, turn signal switch lever and wiper switch lever. Refer to this section.

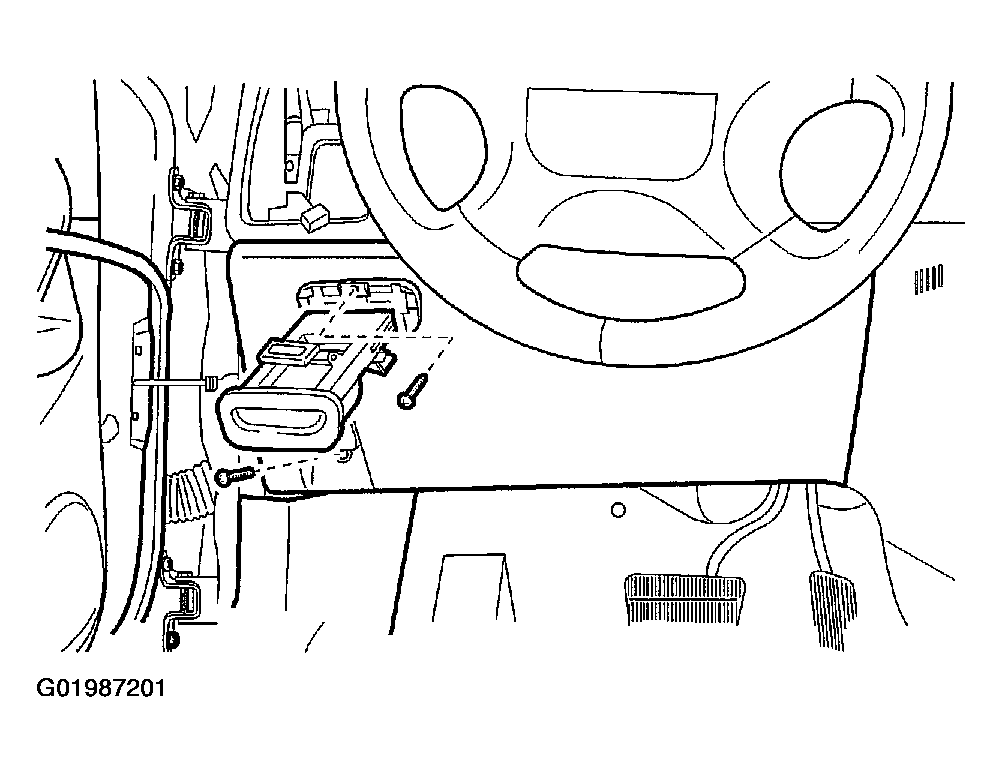

    10. Fig 4: Installing Coin Storage
    G01987201Courtesy of SUZUKI OF AMERICA CORP.
  10. Install the upper and the lower steering column cover panel.
    1. Tighten the upper and the lower steering column cover panel screw to 2.5 N.m (22 lb-in).
  11. Connect the negative battery cable.

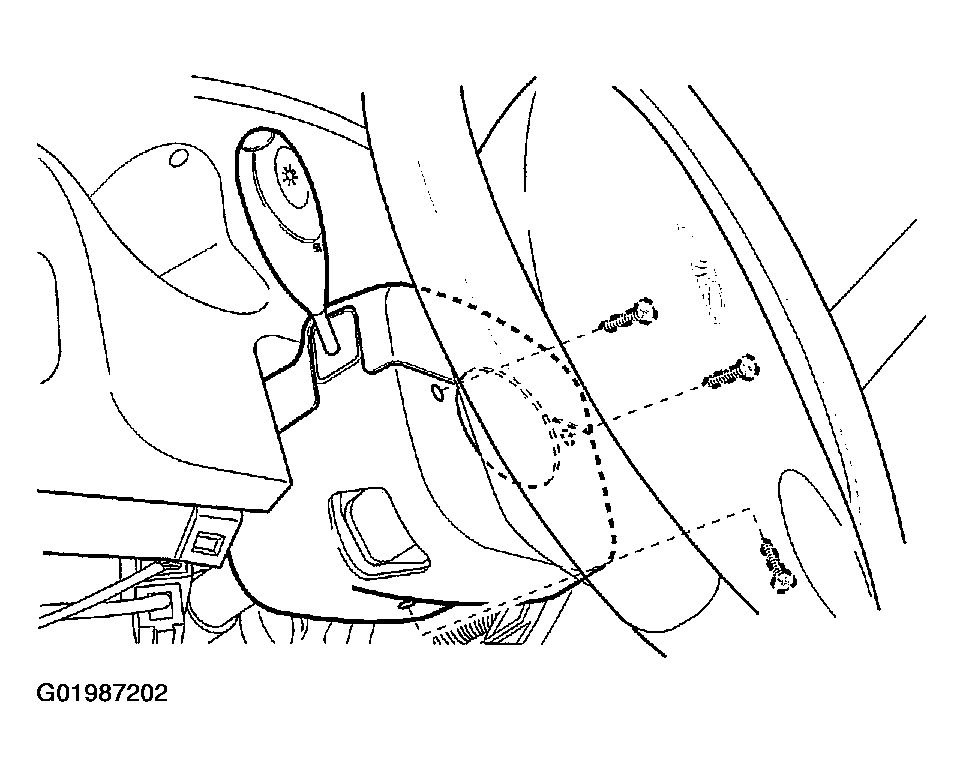

Fig 5: Tightening Upper & Lower Steering Column Cover Panel
G01987202Courtesy of SUZUKI OF AMERICA CORP.
