Assembly Mount, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Procedure

-- Remove the battery tray. Refer to BATTERY TRAY, REMOVING AND INSTALLING .

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Remove and replace the bolts -arrows- for the engine mount one after the other (if this was not already done when the engine was installed).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts loosely.

-- Slide the engine/transmission assembly with an extractor lever until the following dimensions are set:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The clearance between the engine support -2- and the engine mount -1- must be -a- = 10 mm.
The casting edge on the engine support must be parallel to the engine mount support arm. Dimension -b-.

NOTE:

Distance -a- = 10 mm can also be checked with corresponding round stock.

-- Tighten the bolts on the engine mount.

-- Remove the bolts -arrows- for the transmission mount one after the other and replace them (if this was not already done when the engine was installed).

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bolts loosely.

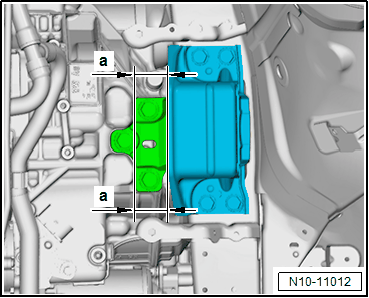

-- Pay attention that on the transmission side the support arm and the transmission mount remain parallel. Dimension -a-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the transmission mount bolts.

Tightening Specifications

Refer to OVERVIEW - ASSEMBLY MOUNTS
Refer to OVERVIEW - BATTERY .
