Engine, Supporting In Installation Position

Special tools and workshop equipment required

• Engine Support Bridge:10 - 222 A
  Fig 1: Engine Support Bridge 10-222A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Bridge - Adapter:10 - 222 A /35
• Engine Support - Bracket w/Spindle and hook:10-222 A/10
  Fig 2: Engine Support - Bracket w/Spindle and hook

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine/Gearbox Support Shackle:10-222 A/12
  Fig 3: Engine/Gearbox Support Shackle (10-222A/12)

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Bridge - Engine Support 18:10 - 222 A /18
  Fig 4: Identifying Special Tools And Workshop Equipment

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support Bridge - Engine Support 3:10 - 222 A/3

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine Support Bridge - Engine Support 19:10 - 222 A /19

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Engine Support - Basic Set - Square Pipe:T40091/1
  Fig 5: Engine Support - Basic Set T40091

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Support - Joint Fixture:T40091/3

-- If there are hose and cable connections located near the engine lifting eyes for the Engine Support Bridge:10 - 222 A  , these must now be removed.

-- Secure the Engine/Gearbox Support Shackle (2 pc.):10 - 222 A /12  on the right lifting eye.

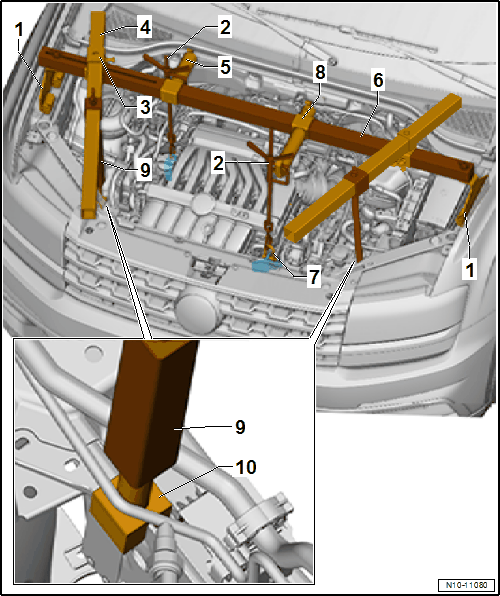

Position the Engine Support Bridge:10-222 A  as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Engine Support Bridge - Adapter:10 - 222 A /35
2. Spindle from the Engine Support Bridge:10-222 A
3. Engine Support - Joint Fixture:T40091/3
4. Engine Support - Basic Set - Square Pipe:T40091/1
5. Engine Support Bridge - Engine Support 3:10 - 222 A/3
6. Square pipe from the Engine Support Bridge:10-222 A
7. Engine/Gearbox Support Shackle:10-222 A/12
8. Engine Support Bridge - Engine Support 18:10 - 222 A /18
9. Engine Support Bridge - Engine Support 19:10-222A/19
10. Foot, Supports itself on the Seam of the Longitudinal Member
