Overview - Assembly Mounts

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

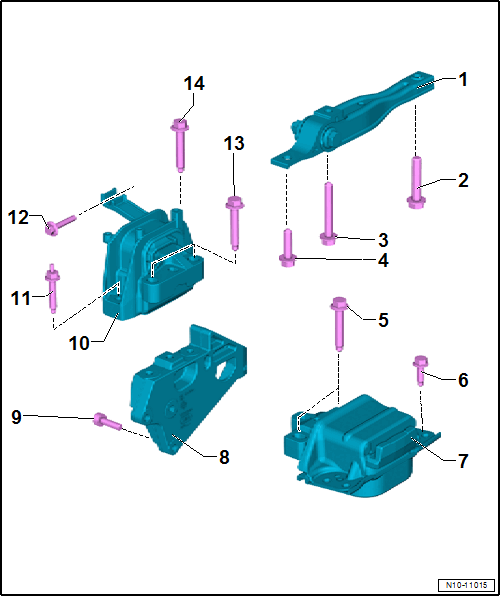

Fig 1: Exploded View Of Assembly Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Pendulum Support
- Removing and Installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- Tightening specification and sequence. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- Tightening specification and sequence. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- Tightening specification and sequence. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- 60 Nm +90°
Bolt
- Always replace after removing
- 50 Nm + 90°
Transmission Mount
- With support arm
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Engine Support
Bolt
- Always replace after removing
- 50 Nm + 90°
Engine Mount
- With support arm
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- Always replace after removing
- 40 Nm +90°
Bolt
- Always replace after removing
- 20 Nm +90°
Bolt
- Always replace after removing
- 60 Nm +90°
Bolt
- Always replace after removing
- 40 Nm +90°
