Selector Mechanism Overview

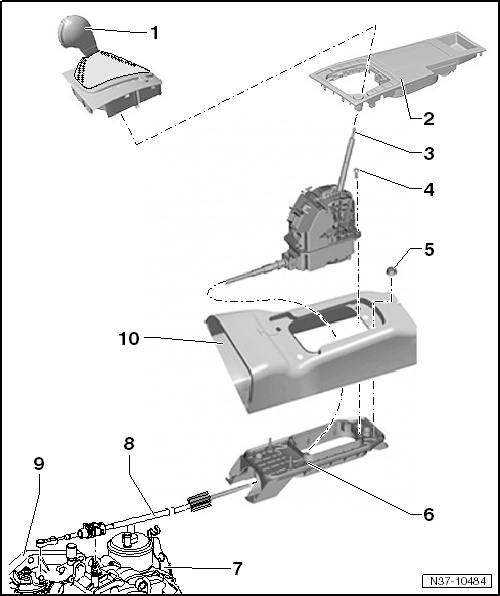

Fig 1: Selector Mechanism Overview, From 11 September 2009

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Selector Handle with Cover
- Do not remove the handle unnecessarily. For emergency release, only the cover must be removed. Refer to SELECTOR LEVER, EMERGENCY RELEASE FROM PARK .
- Removing and installing, refer to SELECTOR LEVER HANDLE .
Center Console Cover
- Is installed only occasionally.
Selector Mechanism with Selector Lever Cable
- With the shift lock solenoid.
- The selector lever cable can only be replaced together with the selector mechanism.
- Do not grease the selector lever cable.
- Removing and installing, refer to one of the following:
  SELECTOR MECHANISM WITH HOUSING .

  SELECTOR MECHANISM WITHOUT HOUSING .
- Checking and adjusting, refer to SELECTOR LEVER CABLE, CHECKING AND ADJUSTING .
Bolt
- 8 Nm
Nut
- M6 - 8 Nm
- M8 - 20 Nm
- Quantity: 4
Selector Housing
- Available only together with the selector mechanism.
Bracket
- For the selector lever cable.
Selector Lever Cable
- Can only be replaced together with the selector mechanism.
Transmission
Tunnel/Body
