CVT Oil Pan and Oil Strainer Removal and Installation: Installation

Reference: CVT OIL PAN AND OIL STRAINER INSPECTION

Reverse removal procedure noting the following points.

• Apply CVT fluid to new O-ring of oil strainer.
• Install oil strainer bolts noting the length and tighten them to specified torque.

Tightening torque

CVT oil pan bolt* (a): 7.9 N.m (0.81 kg-m, 6.0 lbf-ft)

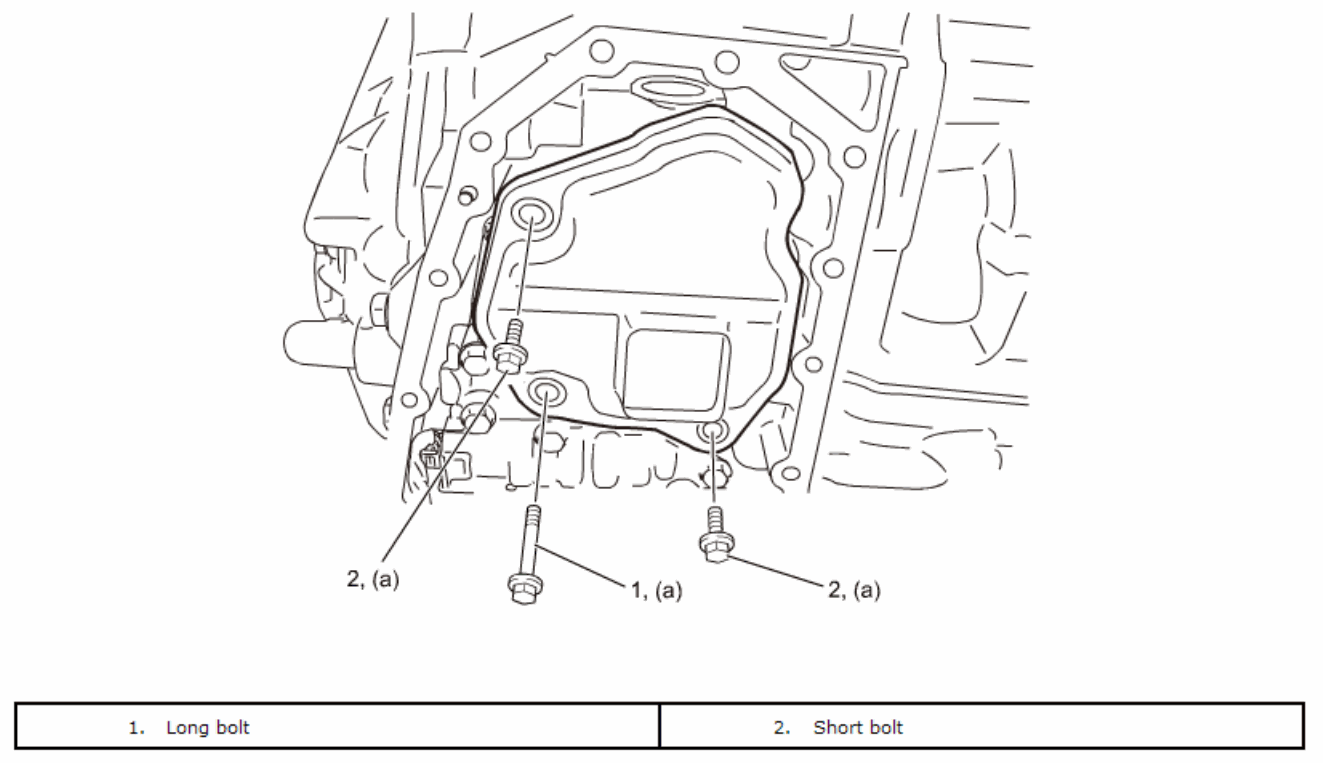

Fig 1: Identifying Oil Strainer & Bolts

Courtesy of SUZUKI OF AMERICA CORP.

• Clean matching surface of CVT case and CVT oil pan. Remove CVT fluid, old gasket and dust from matching surface.
• Use new gasket (1) for CVT oil pan (2).
• Align the dowel pin (3) of CVT case and the dowel pin hole (4) of CVT oil pan, and then install CVT oil pan.
• Tighten CVT oil pan bolts in numerical order ("1" - "18") evenly and gradually to specified torque.
  CAUTION: Be sure to use new oil pan bolts pre-coated with adhesive. Otherwise, bolts may loosen.

  Tightening torque

  CVT oil pan bolt* (a): 7.9 N.m (0.81 kg-m, 6.0 lbf-ft)

  Fig 2: Identifying CVT Oil Pan Bolts Tighten Sequence

  Courtesy of SUZUKI OF AMERICA CORP.
  • Replenish CVT fluid, see CVT FLUID CHANGE .
  • Check CVT fluid level, see CVT FLUID CHECK .
  • Check for CVT fluid leakage after warming up CVT.
