CVT Oil Pan and Oil Strainer Inspection

Reference: CVT OIL PAN AND OIL STRAINER REMOVAL AND INSTALLATION

• Check that no metal particle is attached to the oil cleaner magnets (1). If attached, clean it.
• Check CVT oil pan (2) for crack, deformation, and damage. If any defect is found, replace CVT oil pan.
  Fig 1: Identifying CVT Oil Pan And Oil Cleaner Magnets

  Courtesy of SUZUKI OF AMERICA CORP.
• Check oil strainer (3) for clogging, crack, deformation, and damage. If any abnormality is found, clean or replace oil strainer.

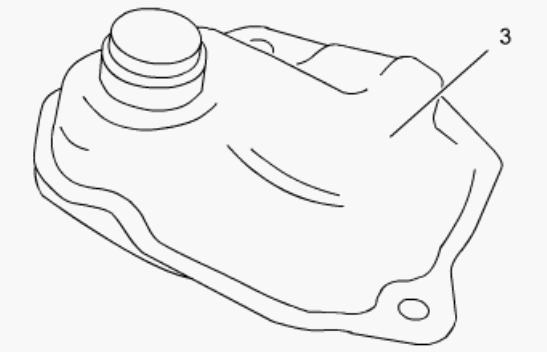

  Fig 2: Checking Oil Strainer For Clogging, Crack, Deformation, And Damage

  Courtesy of SUZUKI OF AMERICA CORP.
