Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

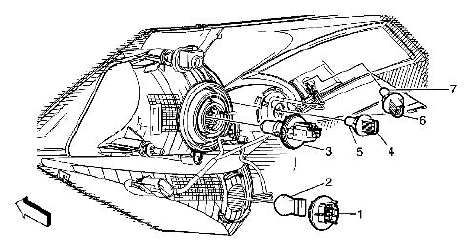

Fig 1: Identifying Headlamp Bulb

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT . Remove the headlamp assembly. Refer HEADLAMP REPLACEMENT .
1	Turn Lamp Bulb Socket
2	Turn Lamp Bulb Tip: Pull the turn lamp bulb straight from the lamp socket.
3	WARNING: Refer to HALOGEN BULB CAUTION . Headlamp Bulb (Hi/Lo)
4	Park Auxiliary Bulb Socket
5	Park Auxiliary Bulb Tip: Pull the park auxiliary bulb straight from the lamp socket.
6	Side Marker Lamp Bulb Socket
7	Side Marker Lamp Bulb Tip: Pull the side marker lamp bulb straight from the lamp socket.
