Headlamp Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

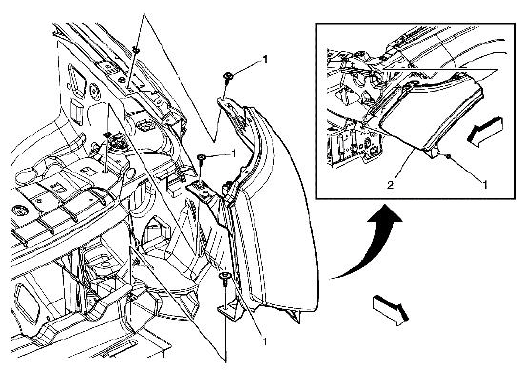

Fig 1: Identifying Headlamp Components

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedures Open the hood. Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Headlamp Bolt (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tip: Access the lower outer bolt from inside the wheelhouse liner. Tightening torque 9 N-m (80 lb in)
2	Headlamp Assembly Procedure Pull the headlamp forward slightly and disconnect the forward lamp harness electrical connector from the headlamp.
