Front Bumper Fascia Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

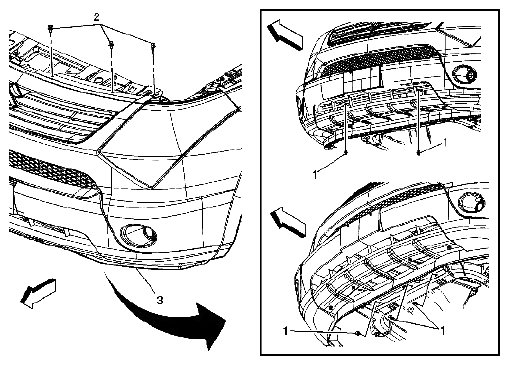

Fig 1: Identifying Front Bumper Fascia Plastic Retainer And Front Bumper Fascia

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liners. Refer to FRONT WHEELHOUSE LINER REPLACEMENT .
1	Front Bumper Fascia Plastic Retainer (Qty: 5)
2	Front Bumper Fascia Plastic Retainer (Qty: 6)
3	Front Bumper Fascia Procedure Disconnect all electrical connectors. Use a pry tool to release the fascia retaining tabs from the fascia lower support.
