Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

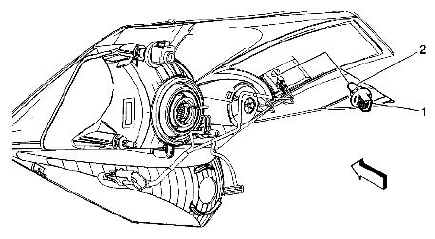

Fig 1: Identifying Front Side Marker Lamp Bulb

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT . Remove the headlamp assembly. Refer HEADLAMP REPLACEMENT .
1	Side Marker Lamp Bulb Socket Tip: Turn the lamp socket a quarter turn counter-clockwise in order to remove the socket from the headlamp assembly.
2	Side Marker Lamp Bulb Tip: Pull the marker lamp bulb straight from the socket.
