Front Bumper Fascia Upper Support Replacement

WARNING: This page is about a different car, the 2008 Suzuki XL7. However, it is still accessible from the selected car via links, so may be relevant.

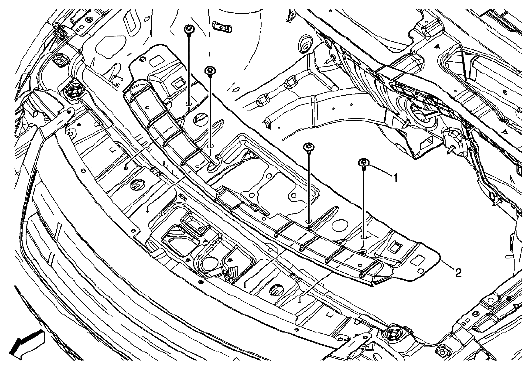

Fig 1: Identifying Front Bumper Upper Fascia Support Bolts And Front Bumper Upper Fascia Support

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENT SPECIFICATION

Callout	Component Name
Preliminary Procedures Remove the hood overslam bumpers. Refer to HOOD BUMPER REPLACEMENT . Remove the primary hood latch. Refer to HOOD PRIMARY LATCH REPLACEMENT . Remove the visible upper bolts for the front headlamps. Refer to HEADLAMP REPLACEMENT . Remove the plastic push pins from the upper fascia as needed. Refer to FRONT BUMPER FASCIA REPLACEMENT .
1	Front Bumper Upper Fascia Support Bolts (Qty: 5) CAUTION: Refer to FASTENER NOTICE . Tightening torque 10 N.m (89 lb in)
2	Front Bumper Upper Fascia Support
