Instrument Panel Lower Trim Panel Replacement - Right Side

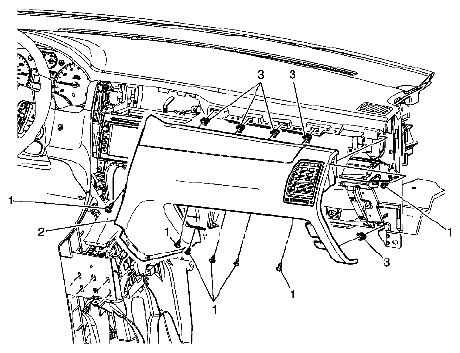

Fig 1: Identifying Instrument Panel Lower Trim Panel - Right Side

Courtesy of SUZUKI OF AMERICA CORP.

COMPONENTS NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the right instrument panel outer trim cover. Refer to INSTRUMENT PANEL OUTER TRIM COVER REPLACEMENT . Remove the right console trim panel. Refer to FRONT FLOOR CONSOLE SIDE TRIM PANEL REPLACEMENT - RIGHT SIDE . Remove the instrument panel accessory trim plate. Refer to INSTRUMENT PANEL ACCESSORY TRIM PLATE REPLACEMENT . Remove the instrument panel compartment assembly. Refer to INSTRUMENT PANEL COMPARTMENT REPLACEMENT .
1	Instrument Panel Lower Trim Panel Screw (Qty: 6) CAUTION: Refer to FASTENER NOTICE . Tightening torque  2 N.m (18 lb in)
2	Instrument Panel Lower Trim Panel Assembly
3	Retainer Clip (Qty: 5)
