Instrument Panel Outer Trim Cover Replacement

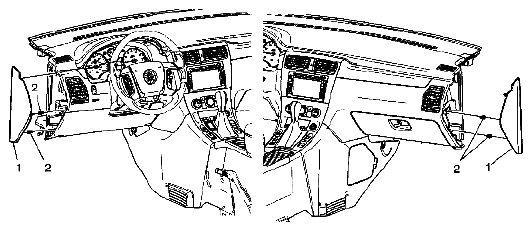

Fig 1: Identifying Instrument Panel Outer Trim Cover
G05471123Courtesy of SUZUKI OF AMERICA CORP.
COMPONENTS NAME REFERENCE

Callout Component Name
1 Instrument Panel Outer Trim Cover Right or Left
2 Retainer Clips (Qty 4) (2 Left Side) (2 Right Side)
