Console Rear Trim Plate Replacement

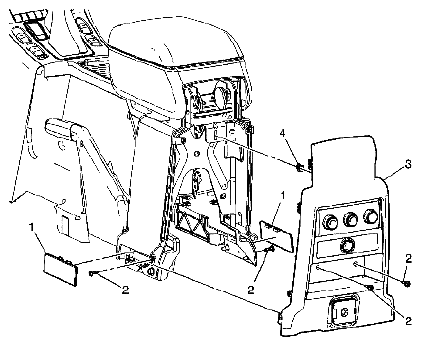

Fig 1: Identifying Console Rear Trim Plate Components

Courtesy of SUZUKI OF AMERICA CORP.

CONSOLE REAR TRIM PLATE COMPONENTS REFERENCE

Callout	Component Name
1	Console Rear Bolt Cover (Qty: 2) Procedure Move the seat forward in order to access the rear bolt covers. Use a flat-bladed plastic trim tool to remove the covers.
2	Console Trim Plate Screw (Qty: 4) CAUTION: Refer to FASTENER NOTICE . Tightening torque 2 N.m (18 lb in)
3	Console Trim Plate Assembly - Rear Procedure Disconnect the electrical connections. If replacing the console trim plate, transfer all necessary components.
4	Retainer Clip (Qty: 1)
