Floor Panel Carpet Replacement (Front)

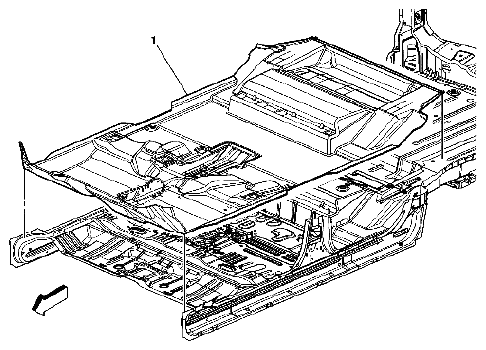

Fig 1: Identifying Floor Panel Carpet Assembly

Courtesy of SUZUKI OF AMERICA CORP.

FLOOR PANEL CARPET COMPONENTS REFERENCE

Callout	Component Name
Preliminary Procedures Remove the front seats. Refer to FRONT SEAT REPLACEMENT - BUCKET . Remove the rear seats. Refer to REAR SEAT REPLACEMENT . Remove the front carpet retainer. Refer to FRONT CARPET RETAINER REPLACEMENT . Remove the rear carpet retainer. Refer to REAR CARPET RETAINER REPLACEMENT . Remove the center console trim panels and the center console. Refer to CONSOLE REPLACEMENT .
1	Front Floor Panel Carpet Assembly Tip: Remove the floor carpet by pulling the carpet from under the center pillar assemblies and lifting the carpet out of the vehicle.
