Rear Carpet Retainer Replacement

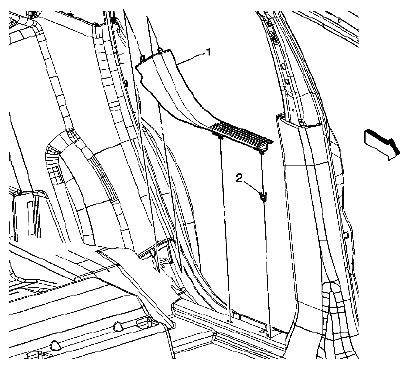

Fig 1: Identifying Rear Side Door Opening Floor Carpet Retainer And Retainer Clip

Courtesy of SUZUKI OF AMERICA CORP.

REAR CARPET RETAINER COMPONENTS REFERENCE

Callout	Component Name
1	Rear Side Door Opening Floor Carpet Retainer Tip: Pull up at the front of the carpet retainer to disengage the retainer clips then rotate the rear of the retainer away from the body side trim panel.
2	Retainer Clip (Qty: 2)
