Rear Knuckle Removal

  1. Raise and suitably support the vehicle.
  2. Remove the rear wheels.
  3. Remove the upper arm nut-to-rear knuckle using KM-507-B.

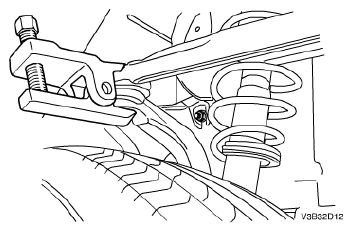

    Fig 1: Identifying Upper Arm & Nut-To-Rear Knuckle
    G04719304Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the front, trailing and rear parallel link. Refer to Trailing Link Removal  and Rear Parallel Link Removal .
  5. Remove the hub. Refer to Rear Hub and Bearing Assembly Removal .
  6. Remove the strut bolt-to-knuckle.
  7. Remove the rear knuckle.
    Fig 2: Identifying Front, Trailing And Rear Parallel Link
    G04719305Courtesy of SUZUKI OF AMERICA CORP.
