Trailing Link Removal

  1. Raise and suitably support the vehicle.
  2. Remove the rear wheels.
  3. Remove the trailing link bolt-to-knuckle and the trailing link bracket bolts.
  4. Remove the trailing link.

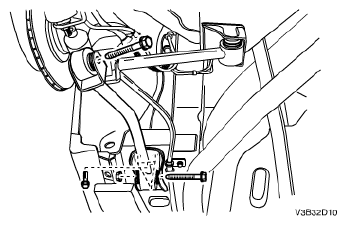

    Fig 1: Identifying Trailing Link Bolt-To-Knuckle And Trailing Link Bracket Bolts
    G04719302Courtesy of SUZUKI OF AMERICA CORP.
