Rear Parallel Link Removal

  1. Raise and suitably support the vehicle.
  2. Remove the rear wheels.
  3. Remove the rear parallel link.
  4. Remove the stabilizer shaft-to-stabilizer link nut.

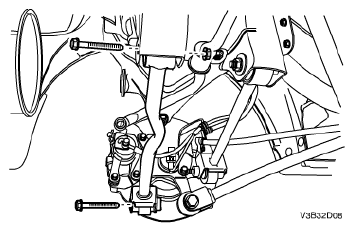

    Fig 1: Identifying Rear Parallel Link & Nuts
    G04719300Courtesy of SUZUKI OF AMERICA CORP.
