Passenger Air Bag (Inflator) Module Removal and Installation: Installation

WARNING: This page is about a different car, the 2006 Suzuki XL-7. However, it is still accessible from the selected car via links, so may be relevant.

Reference: PASSENGER AIR BAG (INFLATOR) MODULE INSPECTION

Install passenger air bag (inflator) module (1) to vehicle.
Tighten passenger air bag (inflator) module bolts to specified torque.
Tightening torque

Passenger air bag (inflator) module bolt a: 23 N.m (2.3 kg-m, 17.0 lb-ft)
Install glove box (3) to instrument panel (2) and then connect glove box damper to glove box.

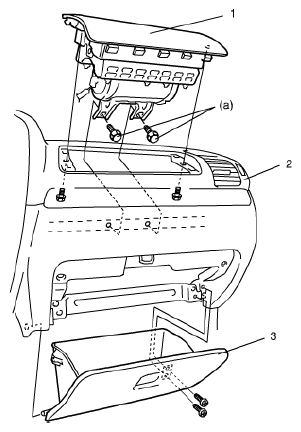

Fig 1: Identifying Passenger Air Bag (Inflator) Module, Instrument Panel & Glove Box
Courtesy of SUZUKI OF AMERICA CORP.
Connect negative cable to battery.
Enable air bag system. Refer to ENABLING AIR BAG SYSTEM .
