Front Toe Adjustment

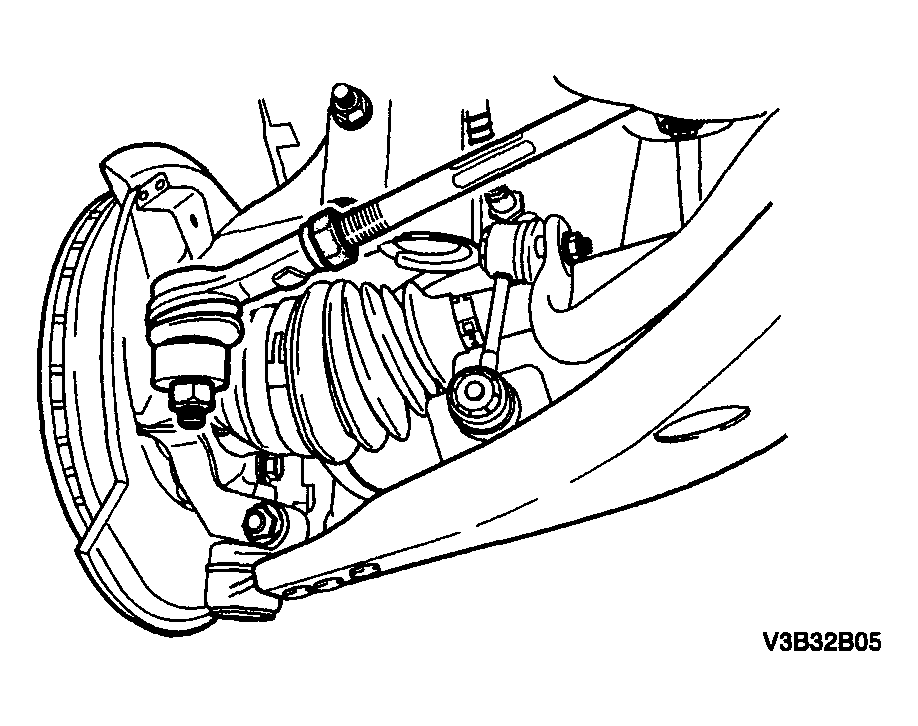

- Disconnect the outer tie rods from the knuckle assemblies. Refer to "OUTER TIE ROD REMOVAL ".
- Loosen the front toe adjusting nut.
- Turn the right and the left outer tie rods to align the toe to the proper specifications. Refer to "OUTER TIE ROD INSTALLATION ".
- Hold the outer tie rod and tighten the front toe adjusting nut.
Tighten
Tighten the front toe adjusting nut to 64 N.m (47 lb-ft).
- Reconnect the outer tie rods to the knuckle assemblies. Refer to "OUTER TIE ROD INSTALLATION
".NOTE: In this adjustment, the right and the left tie rods must be equal in length, or the tires will wear unevenly.
