Outer Tie Rod Installation

  1. Reposition the adjusting nut to the marks on the inner tie rod.
  2. Install the outer tie rod by twisting it onto the inner tie rod.

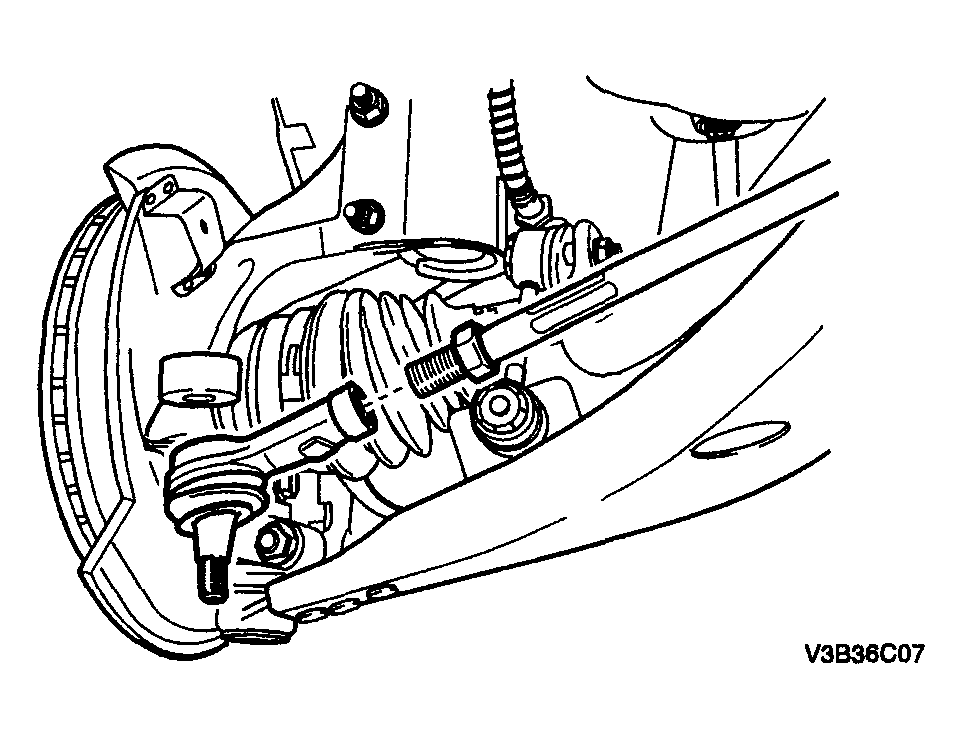

    Fig 1: Installing Outer Tie Rod By Twisting It Onto Inner Tie Rod
    G04095711Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect the outer tie rod to the steering knuckle.
  4. Perform a front toe adjustment. Refer to "FRONT TOE ADJUSTMENT ".
  5. Tighten the adjusting nut.

    Tighten

    Tighten the outer tie rod adjusting nut to 64 N.m (47 lb-ft).

  6. Install the outer tie rod nut.

    Tighten

    Tighten the outer tie rod nut to 50 N.m (37 lb-ft).

  7. Install the wheel. Refer to "WHEEL INSTALLATION ".

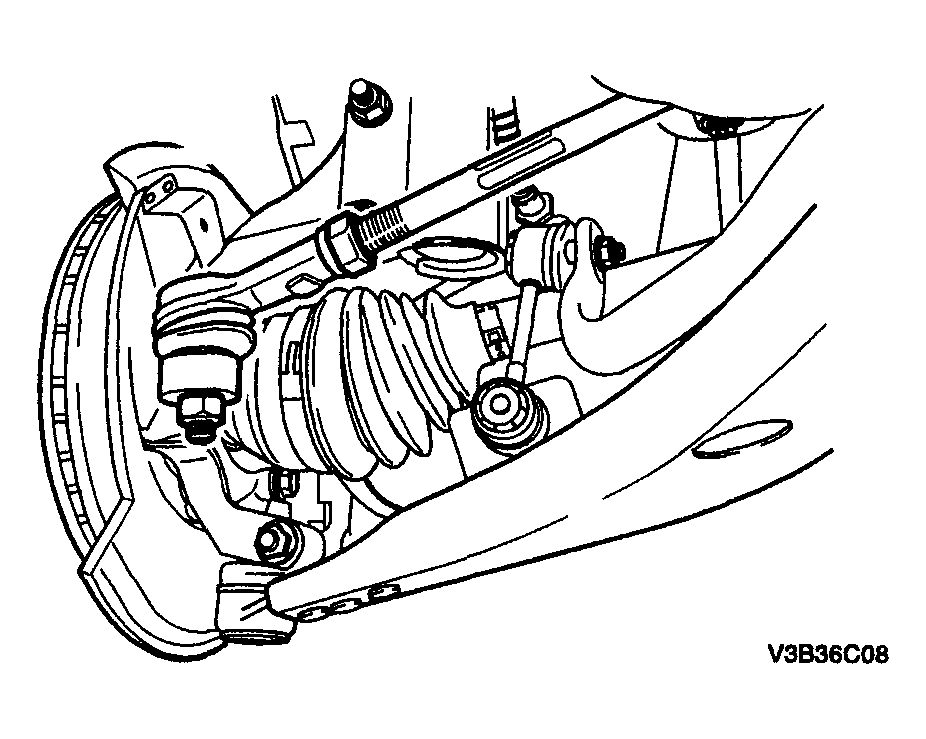

    Fig 2: Installing Outer Tie Rod Nut
    G04095712Courtesy of SUZUKI OF AMERICA CORP.
