Outer Tie Rod Removal

Tools Required

KM-507-B Ball Joint Remover

1. Remove the wheel. Refer to "WHEEL REMOVAL ".
2. Mark the threads on the inner tie rod to aid in repositioning the adjusting nut.
3. Remove the outer tie rod nut and disconnect the outer tie rod from the steering knuckle using the ball joint remover KM-507-B.

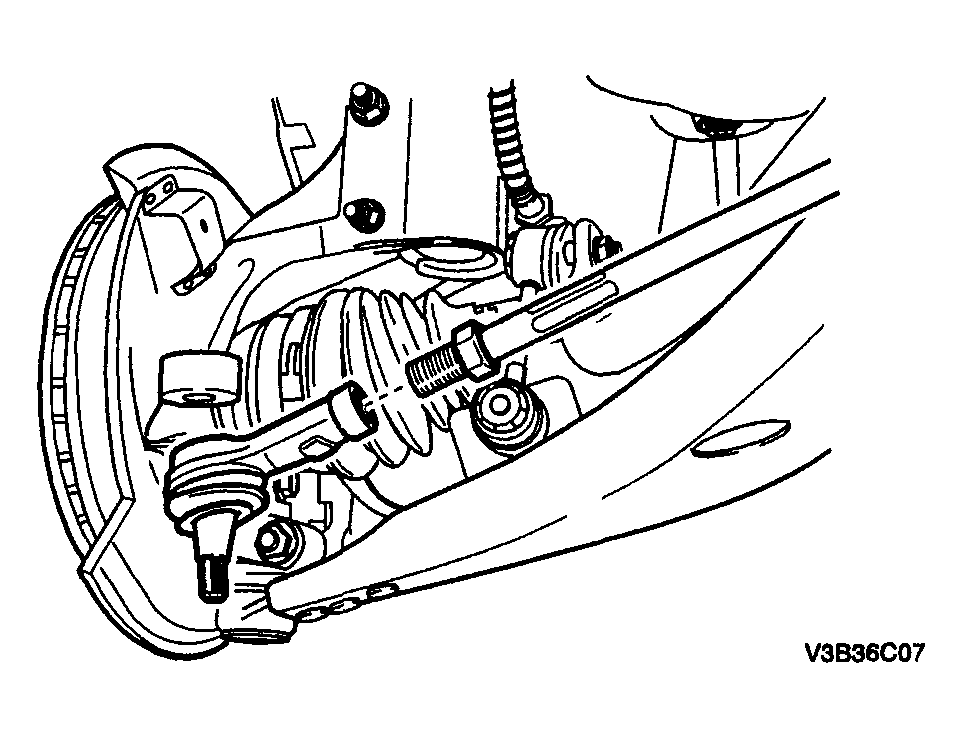

   Fig 1: Removing Outer Tie Rod Nut And Disconnect Outer Tie Rod From Steering Knuckle

   Courtesy of SUZUKI OF AMERICA CORP.
4. Loosen the outer tie rod adjusting nut and remove the outer tie rod by twisting it off the inner tie rod.

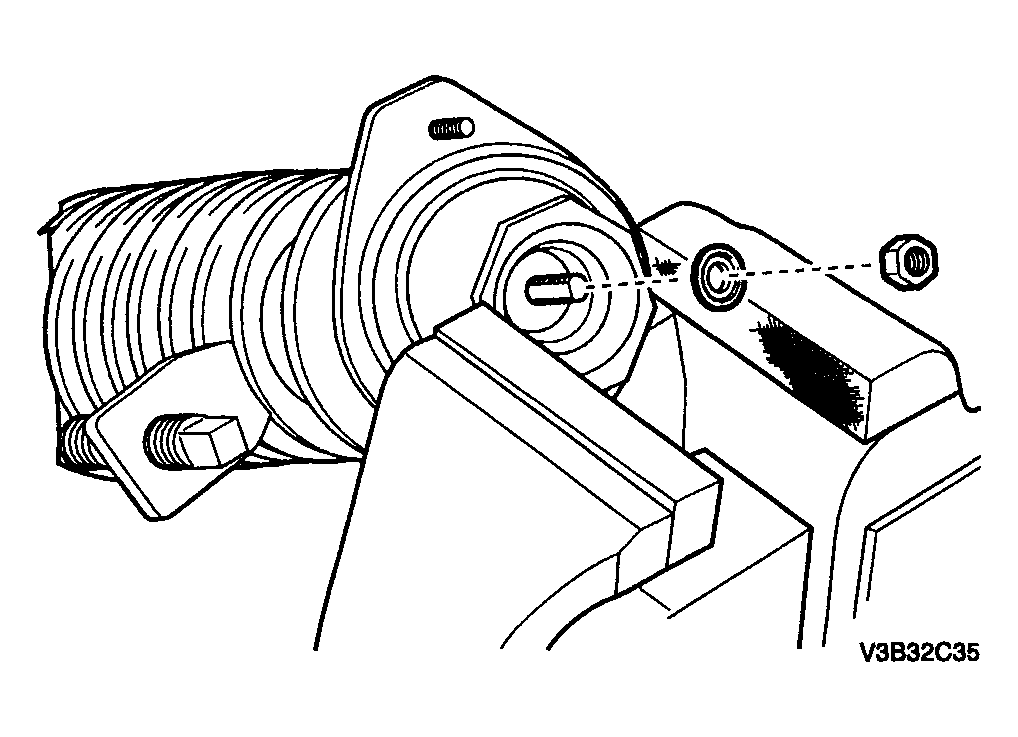

   Fig 2: Removing Outer Tie Rod By Twisting It Off Inner Tie Rod

   Courtesy of SUZUKI OF AMERICA CORP.
