Instrument Panel Installation

  1. Position the instrument panel in the vehicle.
  2. Connect the instrument panel electrical connectors.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  3. Install the nuts securing the sides of the instrument panel to the body.

    Tighten

    Tighten the instrument panel-to-body nuts to 22 N.m (16 lb-ft).

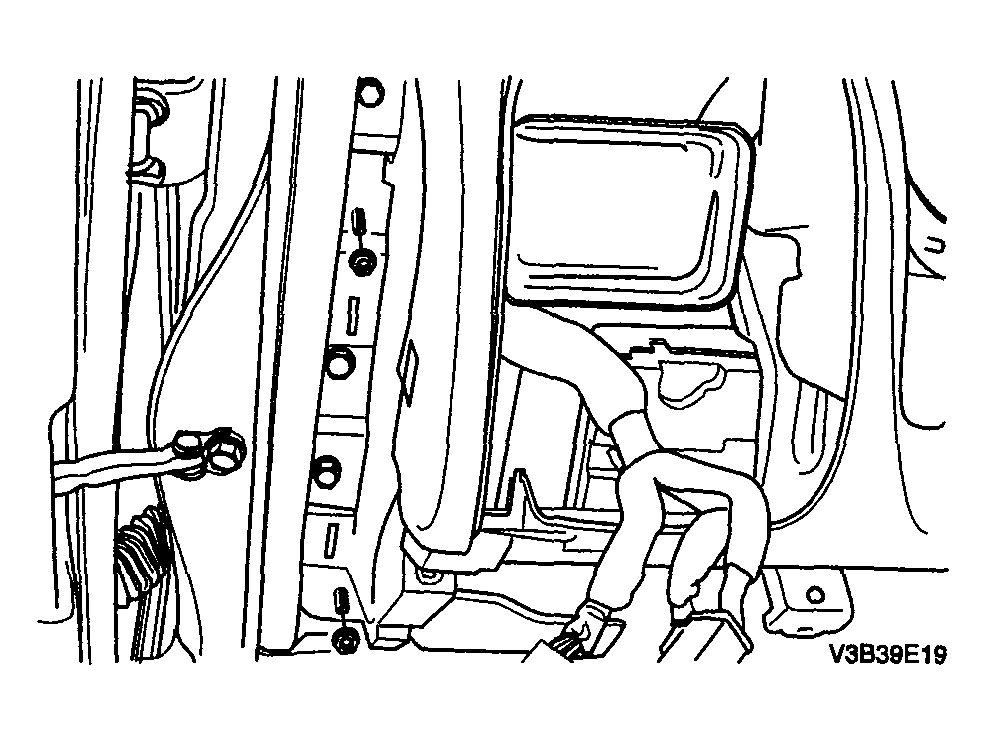

    Fig 1: Installing Nuts Securing Sides Of Instrument Panel To Body
    G04096178Courtesy of SUZUKI OF AMERICA CORP.
  4. Install the fixing screws securing the instrument panel.

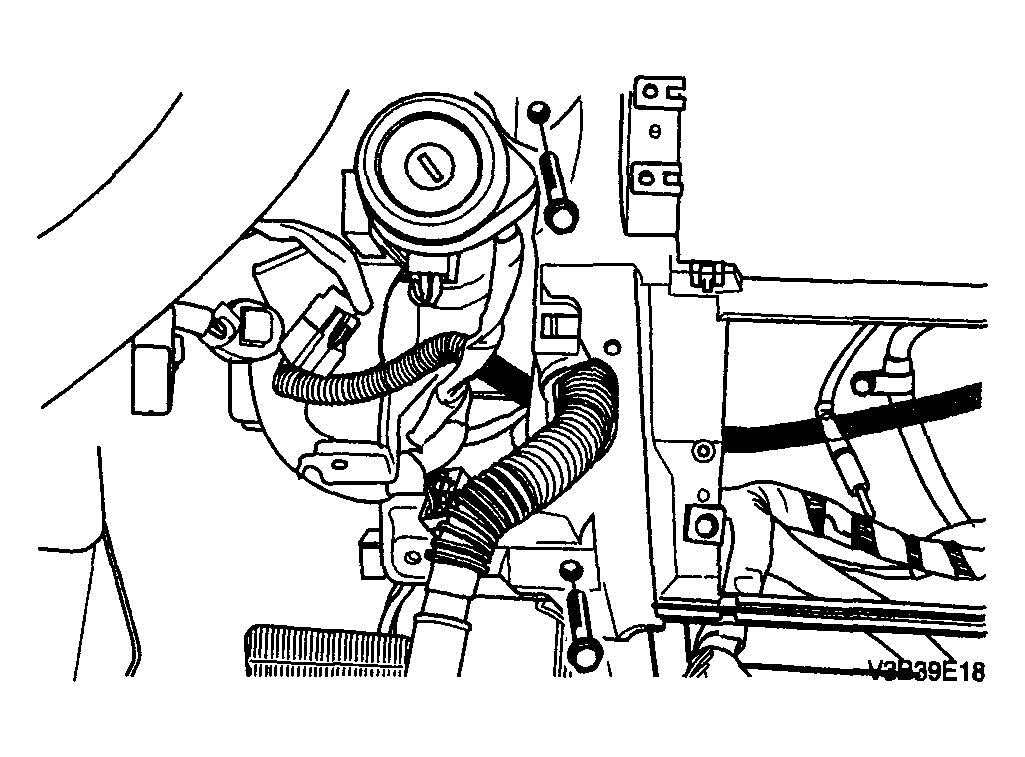

    Fig 2: Installing Fixing Screws Securing Instrument Panel
    G04096179Courtesy of SUZUKI OF AMERICA CORP.
  5. Install the instrument panel bolts below the windshield.

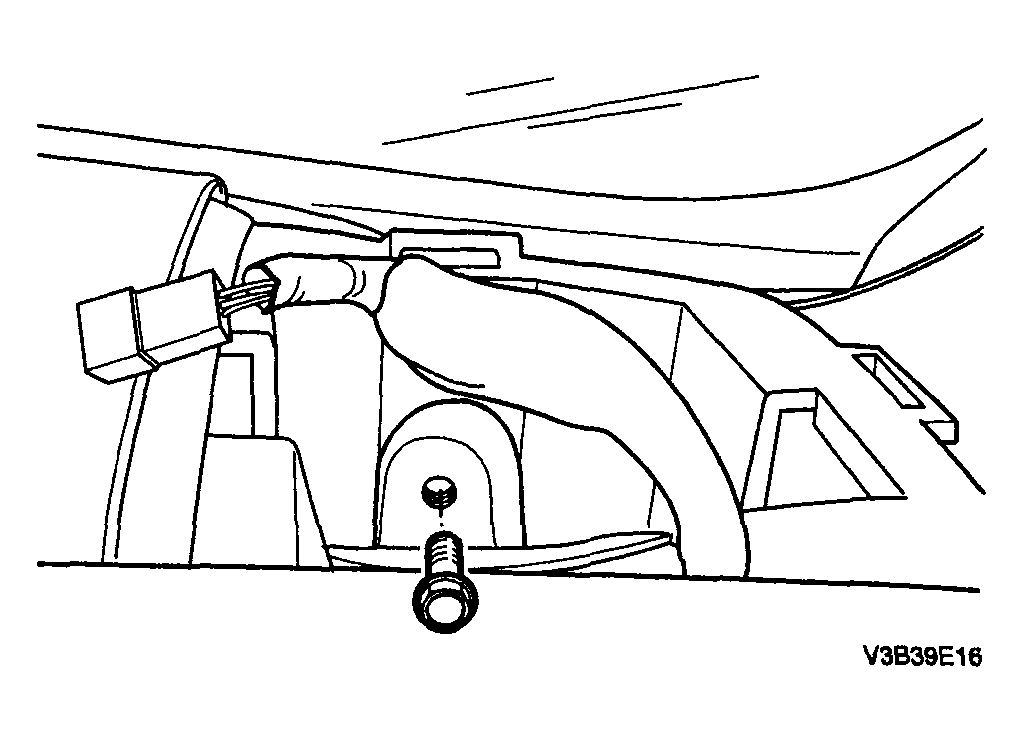

    Fig 3: Installing Instrument Panel Bolts Below Windshield
    G04096180Courtesy of SUZUKI OF AMERICA CORP.
  6. Raise the steering column.
  7. Connect the steering column electrical connector.
  8. Install the nuts and the bolts securing the steering column.

    Tighten

    Tighten the steering column nuts to 22 N-m (16 lb-ft).

    Tighten the steering column bolts to 22 N-m (16 lb-ft).

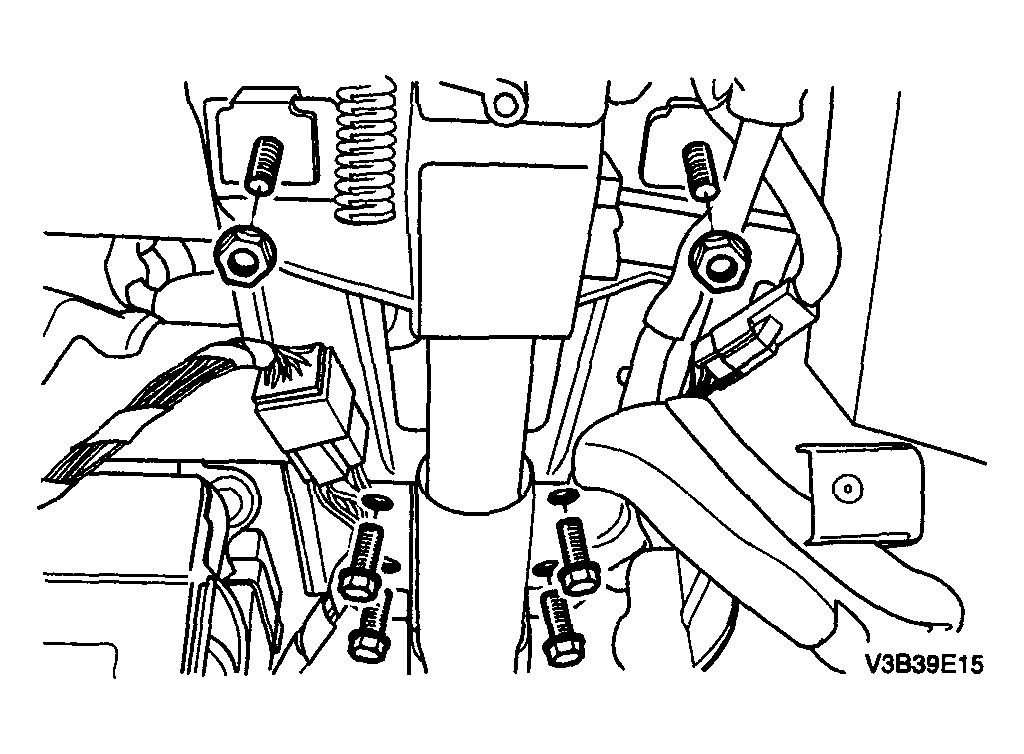

    Fig 4: Installing Nuts And Bolts Securing Steering Column
    G04096181Courtesy of SUZUKI OF AMERICA CORP.
  9. Install the instrument panel fuse block with the screw.
  10. Install the instrument panel side covers with the screws.

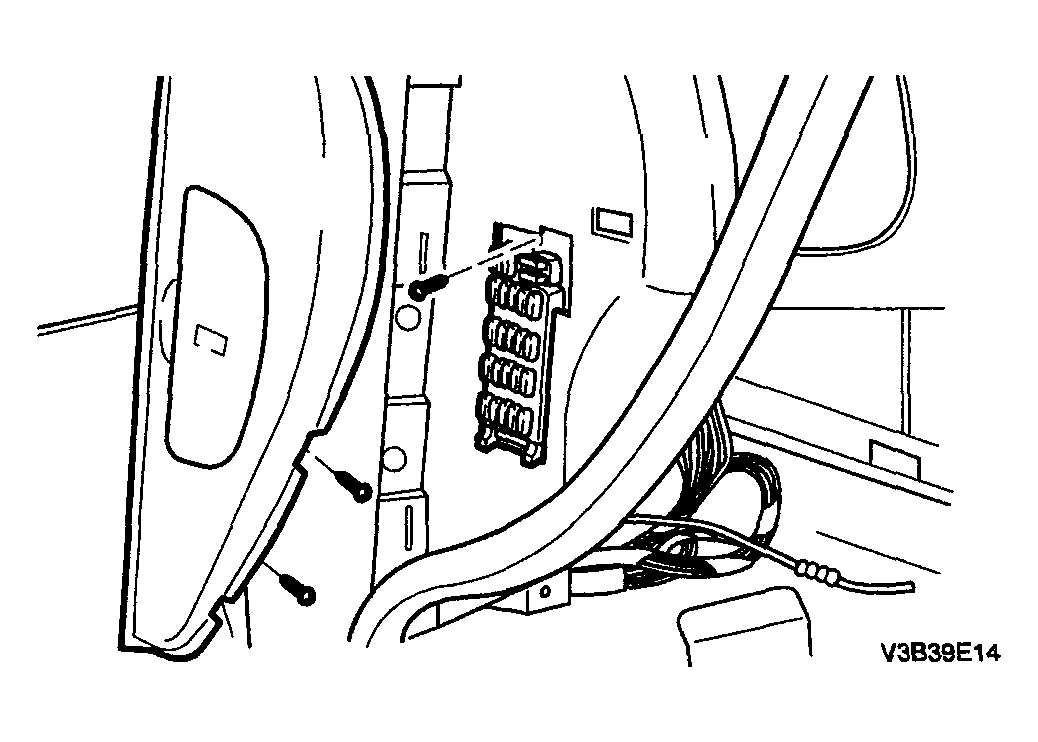

    Fig 5: Installing Instrument Panel Fuse Block With Screw
    G04096182Courtesy of SUZUKI OF AMERICA CORP.
  11. Install the knee bolsters. Refer to "DRIVER'S SIDE KNEE BOLSTER INSTALLATION ".
  12. Connect the glove box housing electrical connectors.
  13. Install the screws and the glove box housing.
  14. Install the glove box. Refer to "GLOVE BOX INSTALLATION "
  15. Install the kick panels. Refer to "KICK PANEL INSTALLATION ".
  16. Install the instrument cluster. Refer to "INSTRUMENT CLUSTER INSTALLATION ".
  17. Install the automatic temperature controls assembly. Refer to "AUTOMATIC TEMPERATURE CONTROL ASSEMBLY INSTALLATION : Automatic Type".

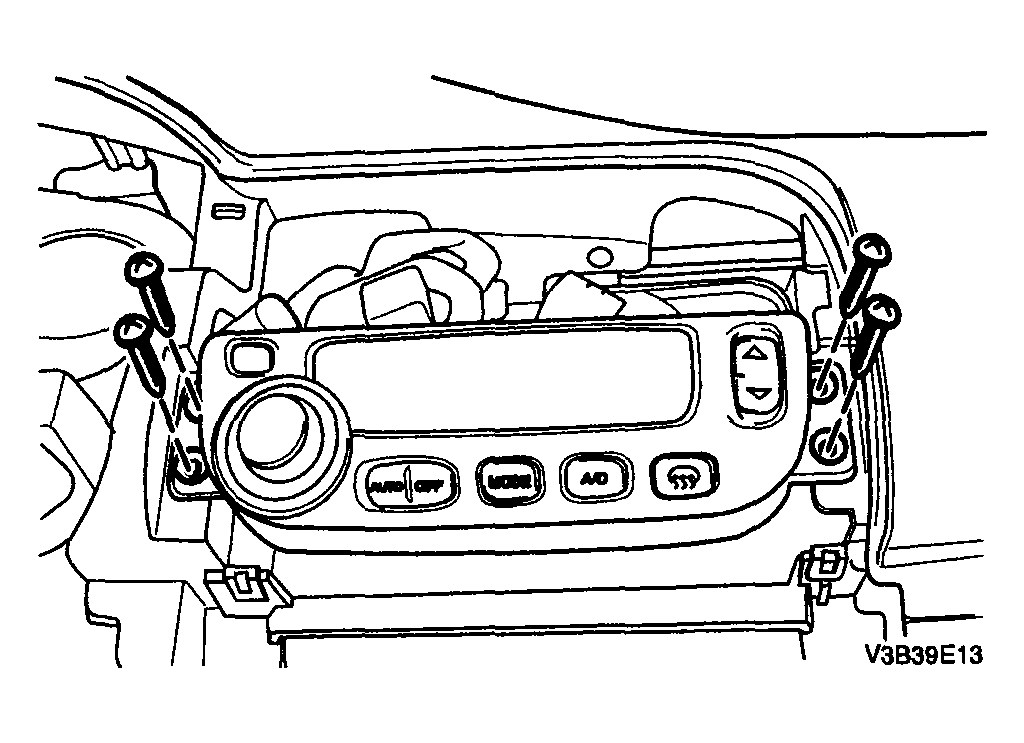

    Fig 6: Installing Automatic Temperature Controls Assembly
    G04096183Courtesy of SUZUKI OF AMERICA CORP.
  18. Install the instrument cluster trim panel. Refer to "INSTRUMENT CLUSTER TRIM PANEL INSTALLATION ".
  19. Install the instrument cluster dimmer switch assembly. Refer to "INSTRUMENT CLUSTER DIMMER / HEADLAMP LEVELING SWITCH INSTALLATION ".
  20. Install the tweeter speakers and the stereo cassette AM/FM radio. Refer to "STEREO CASSETTE AM/FM RADIO INSTALLATION ".
  21. Install the sun sensor and the automatic temperature controls assembly. Refer to "SUN SENSOR INSTALLATION : Automatic Type".
  22. Install the floor console. Refer to "FLOOR CONSOLE INSTALLATION ".
  23. Connect the negative battery cable.
